LED BOLLARD

The next generation of NICOR LED Bollards offers versatile and energy-efficient outdoor lighting. Featuring selectable lumen output and wattage settings and four different head styles, it combines durability and contemporary design, providing long-lasting performance and high-quality light. Constructed from robust materials and designed to withstand harsh weather conditions, this bollard light ensures reliable operation and minimal maintenance. Enhance the safety and aesthetics of your outdoor spaces with the adaptable and efficient NICOR OBL LED Bollard.

Category: Tags:

Specifications

  • Parabolic or Louvered distributions
  • Selectable CCTs of 3000/4000/5000K
  • >70 CRI
  • Selectable wattages of 14/19/24W
  • Surge protection 4kV provides single phase protection for line/neutral, line/ground and neutral/ground in accordance with IEEE C62.41 2002 C
  • Operating temperature rating of -40° to 113°F (-40°C to 45°C)
  • Input voltage of 120-277VAC
  • Standard full-range dimming with compatible 0-10VDC dimmers
  • CCT and Wattage selector on bottom of head

Downloads

– Outdoor Brochure
– Sell Sheet

– Spec Sheet
– Installation Instructions

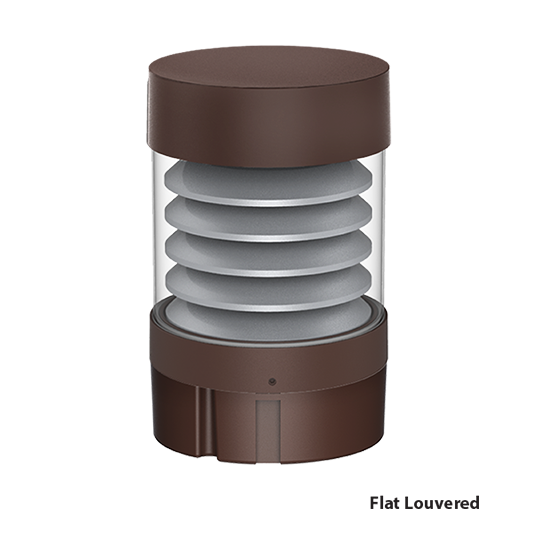

OBL2 - Louver
3000K
Warm White		4000K
Neutral		5000K
Cool

962/1343/1655
Lumens

978/1368/1708
Lumens

975/1354/1725
Lumens

14/19/24
Input Watts

14/19/24
Input Watts

14/19/24
Input Watts

~76
lm/W

~79
lm/W

~77
lm/W

70
CRI

70
CRI

70
CRI

Part Numbers:

 Select:OBL2LFRD24SUS7BZB - Flat
OBL2LRRD24SUS7BZB - Round

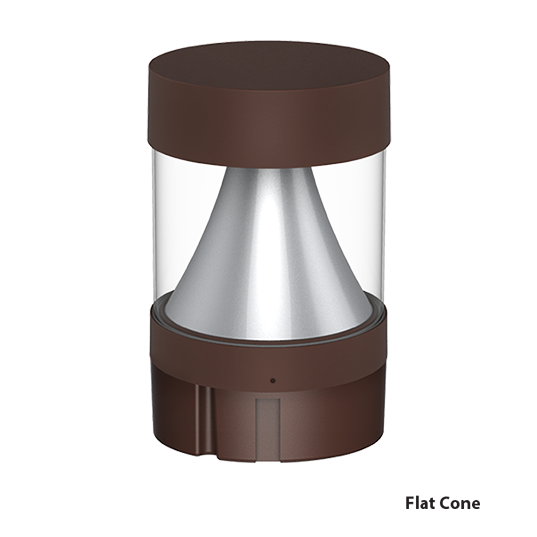

OBL2 - Cone
3000K
Warm White		4000K
Neutral		5000K
Cool

2041/2788/3453
Lumens

2101/2895/3590
Lumens

2108/2911/3586
Lumens

14/19/24
Input Watts

14/19/24
Input Watts

14/19/24
Input Watts

~154
lm/W

~162
lm/W

~159
lm/W

70
CRI

70
CRI

70
CRI

Part Numbers:

 Select:OBL2CFRD24SUS7BZB - Flat
OBL2CRRD24SUS7BZB - Round
OBL2 - Louver
3000K
Warm White		4000K
Neutral		5000K
Cool

4235/5647/7058
Lumens

 4700/6267/7833
Lumens

4267/5690/7112
Lumens

36/48/60
Input Watts

36/48/60
Input Watts

36/48/60
Input Watts

126
lm/W

140
lm/W

127
lm/W

84
CRI

84
CRI

84
CRI

Part Numbers:

 Select:

OBL2LFRD24SUS7BZB - Flat

OBL2LRRD24SUS7BZB - Round

OBL2 - Cone
3000K
Warm White		4000K
Neutral		5000K
Cool

4235/5647/7058
Lumens

 4700/6267/7833
Lumens

4267/5690/7112
Lumens

36/48/60
Input Watts

36/48/60
Input Watts

36/48/60
Input Watts

126
lm/W

140
lm/W

127
lm/W

84
CRI

84
CRI

84
CRI

Part Numbers:

 Select:

OBL2CFRD24SUS7BZB - Flat

OBL2CRRD24SUS7BZB - Round
