3” LED NEW CONSTRUCTION HOUSING

The 13200A-LED features IDEAL® connections that allow for quick, snap-in connection of NICOR® 3” D-series LED downlights. Suitable for new construction in residential and commercial applications. Suitable for direct contact with insulation.

Categories: Tags:

Specifications

  • Input Voltage: 120V
  • Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas
  • Washington State Energy Code approved to meet restricted airflow requirements

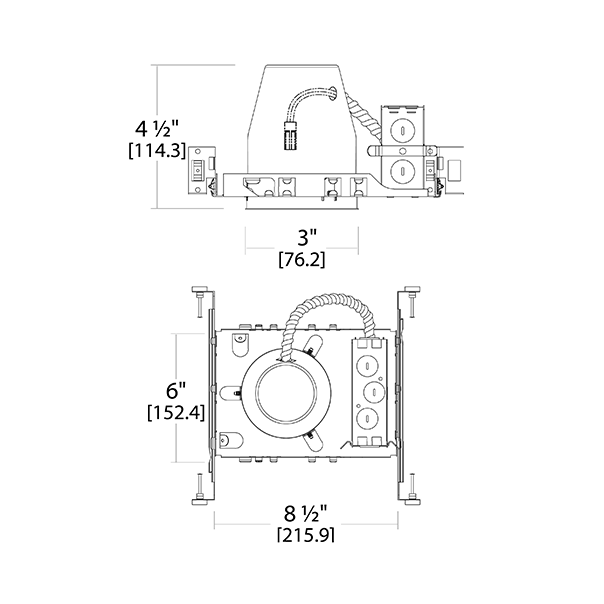

  • 4½” height allows use in 2” x 6” joist construction
  • Housing adjusts from ½” to 1½” to accommodate ceiling thickness.
  • Listed for through-branch circuit wiring. Includes several ¾” knockouts.
  • Provide greater stability using heavy-gauge NICOR captive hanger bars. Position housing at any point within a 24” joist span.
  • Can-to-joist alignment helped by unique hanger bar lip design.
  • Four double-headed captive nails provided for ease of installation.
  • Reposition bars 90° on plaster frame without tools.
  • Shorten bars using score lines to accommodate a 12” joist span. No tools required.



Part Number:

13200A-LED

Downloads

– Spec Sheet
– Installation Instructions
