6″ SLOPE CEILING HOUSING

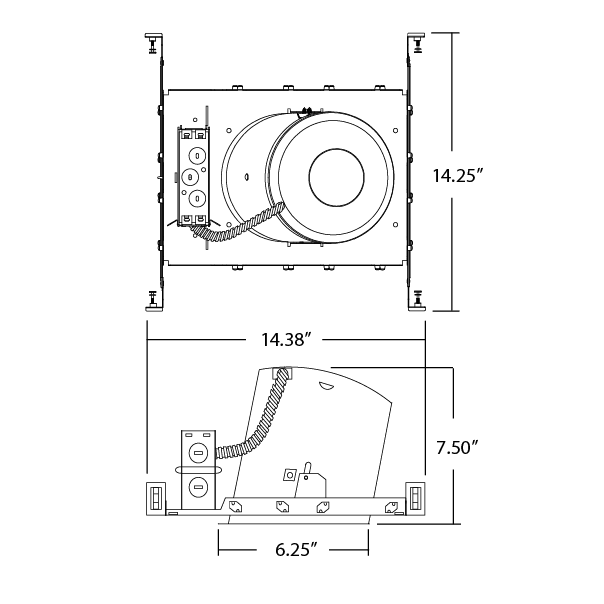

This 6″ IC rated housing is suitable for new construction in residential and commercial applications and for direct contact with insulation. Integral thermal guards protect against improper lamping and misuse of insulation materials with lamp wattage ratings and apertures based off trim selection. Designed for slope ceiling installation with a 2/12 to 6/12 pitch, the socket pivots to allow  the lamp to be aimed straight down regardless of ceiling pitch. The airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas. The housing adjusts from ½” to 1½” to accommodate ceiling thickness and its 7½” height allows it to be used in 2” x 8” joist construction.

Categories: Tag:

Specifications

  • Transformer includes thermal protector guards against lamping and misuse of insulation materials
  • 7½” height allows use in 2” x 8” joist construction
  • Suitable for new construction in residential or commercial applications
  • Line voltage
  • Listed for through branch circuit wiring and includes several ¾" knockouts
  • Supplied with three push in wire connectors
  • Aluminum construction provides great heat dissipation
  • Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas
  • Washington State Energy Code approved to meet restricted airflow requirements



Part Number:

17022A

Downloads

– Spec Sheet
– Installation Instructions
