NEW CONSTRUCTION FRAMES FOR DLR TRIMS

The DLR4-FRAME and DLR56-FRAME are designed to lower the overall system cost of installing the DLR4 or DLR56 in new construction applications and is suitable for use in residential and commercial applications.

*

* When used with DLR56 downlight

Categories: Tag:

Specifications

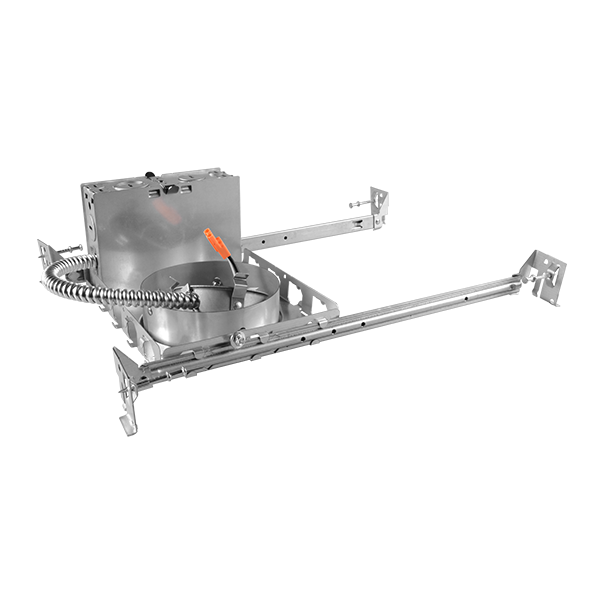

  • DLR4-FRAME
    • Listed for through branch circuit wiring and includes five knockouts: four ½” and 1
      ¾”|½” combined.
    • Four pry-outs with integral strain relief simplify Romex installation
    • Friction clip sleeve for easy installation of DLR4 trim
    • Supplied with three push-in wire connectors
    • Patented trim attachment system with IDEAL connector
    • Rated for Insulation Contact
    • Air tight when used with DLR4 downlight
  • DLR56-FRAME
    • Listed for through branch circuit wiring and includes five knockouts: four ½” and 1
      ¾”|½” combined.
    • Four pry-outs with integral strain relief simplify Romex installation
    • Two v-spring clips for easy installation of DLR56 downlight
    • Supplied with three push-in wire connectors
    • Patented trim attachment system with IDEAL connector
    • Rated for Insulation Contact
    • Air tight when used with DLR56 downlight



Part Numbers:

DLR4-FRAME
DLR56-FRAME

Downloads

– DLR4-FRAME Spec Sheet
– DLR4-FRAME Installation Instructions

– DLR56-FRAME Spec Sheet
– DLR56-FRAME Installation Instructions
