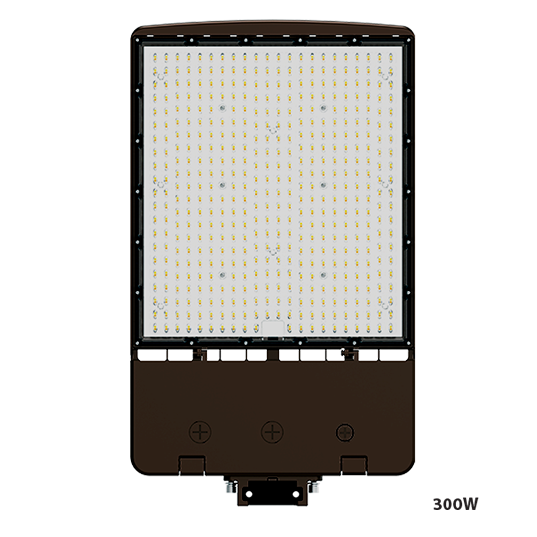

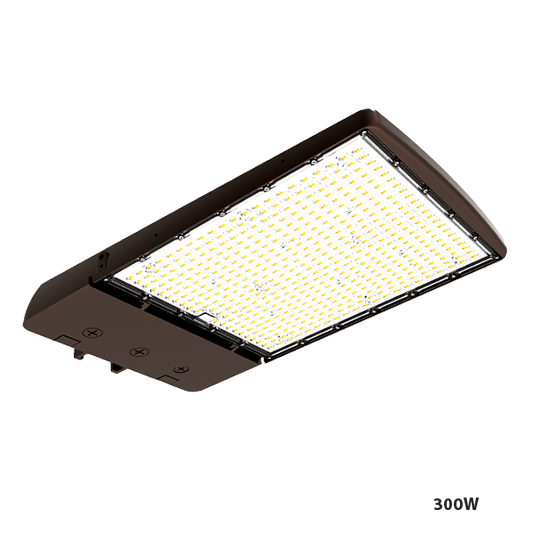

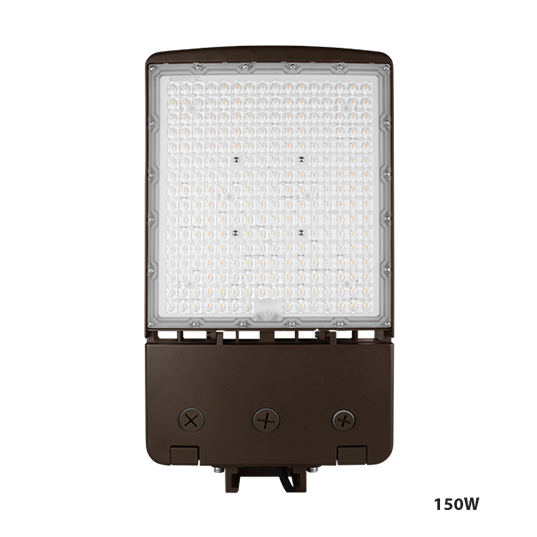

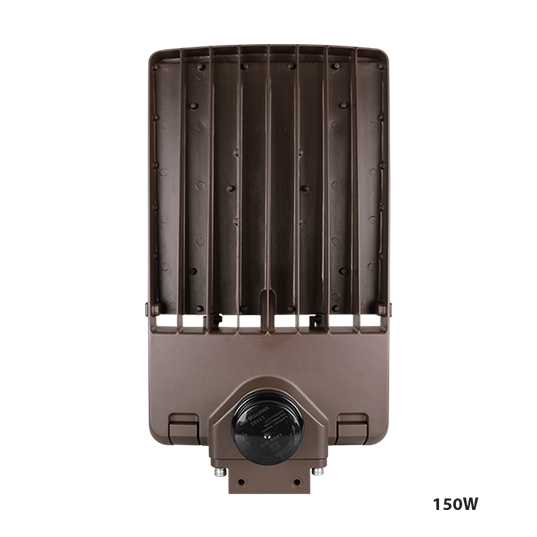

LED AREA LIGHT

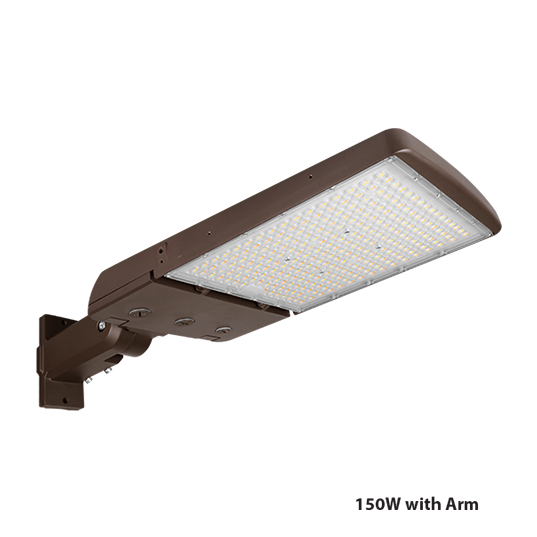

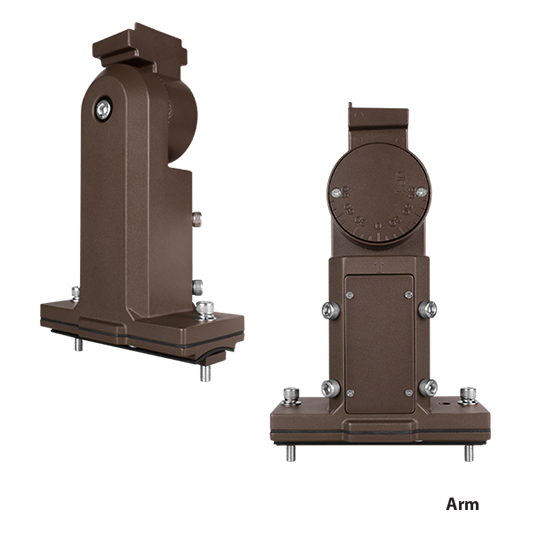

Introducing NICOR’s newest area light, the OAL4. This versatile lighting solution offers selectable wattage, color temperature (CCT), and beam distribution, ensuring maximum flexibility for various applications. Offering 150/120/100W and 300/240/200W models with 3/4/5K CCT and Type III/IV/V standard customized lighting is as easy as the flick of a switch. Includes an adjustable, multi-function mounting arm (pole+slipfitter) for simpler, quicker installation. Illuminate your space with the power of choice. Whether for parking lots, campuses, pathways, or any large open area, the OAL4 delivers tailored lighting solutions with unparalleled flexibility, efficiency, and reliability.



Category: Tags:

Specifications

  • Impact resistant polycarbonate lens
  • Selectable distribution of Type III/IV/V via switch on fixture
  • Optional distribution optic of Type II/III/IV

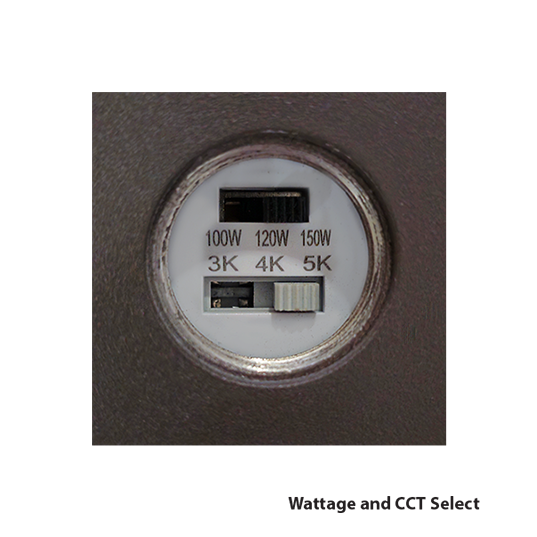

  • Selectable CCT of 3000/4000/5000K
  • Standard 80 CRI to improve safety and color definition in public places
  • Wattage selectable 150/120/100W and 300/240/200W
  • Input voltage of 120-277VAC or 277-480VAC
  • Surge protection 10kA on 120-277VAC and 20kA on 277-480VAC provides single phase protection for line/neutral, line/ground and neutral/ground in accordance with IEEE C62.41 2002 C High category
  • Operating temperature rating of -40° to 122°F (-40°C to 50°C)

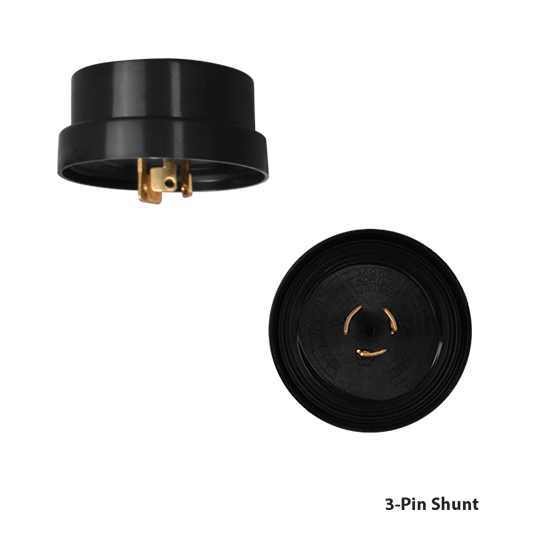

  • 3-pin receptacle with shunt standard
  • Optional 7 pin receptacle and shunt available
  • Optional Microwave motion sensor accessories available
  • 12V sensor socket preinstalled
  • Standard full-range dimming with 0-10VDC dimmers

Downloads

– Sell Sheet
– Features and Benefits
– Comparison Sheet

– Spec Sheet
– Installation Instructions

– ies Files 150W
– ies Files 300W

OAL4 - 150W Type III Optic
3000K
Warm White		4000K
Neutral		5000K
Cool

14,236/17,069/21,634
Lumens

 15,472/17,991/22,826
Lumens

 14,798/17,744/22,489
Lumens

100/120/150
Input Watts

100/120/150
Input Watts

100/120/150
Input Watts

145
lm/W

158
lm/W

151
lm/W

83
CRI

83
CRI

83
CRI

Part Number:

 Select: OAL4150SUS8
OAL4 - 300W Type III Optic
3000K
Warm White		4000K
Neutral		5000K
Cool

28,392/34,206/43,219
Lumens

 30,015/36,144/45,653
Lumens

 29,609/35,693/45,067
Lumens

200/240/300
Input Watts

200/240/300
Input Watts

200/240/300
Input Watts

144
lm/W

158
lm/W

151
lm/W

83
CRI

83
CRI

83
CRI

Part Number:

 Select: OAL4300SUS8
OAL4 - 150W Type III Optic
3000K
Warm White		4000K
Neutral		5000K
Cool

14,236/17,069/21,634
Lumens

 15,472/17,991/22,826
Lumens

 14,798/17,744/22,489
Lumens

100/120/150
Input Watts

100/120/150
Input Watts

100/120/150
Input Watts

145
lm/W

158
lm/W

151
lm/W

83
CRI

83
CRI

83
CRI

Part Number:

 Select: OAL4150SUS8



OAL4 - 300W Type III Optic
3000K
Warm White		4000K
Neutral		5000K
Cool

28,392/34,206/43,219
Lumens

 30,015/36,144/45,653
Lumens

 29,609/35,693/45,067
Lumens

150/120/100
Input Watts

150/120/100
Input Watts

150/120/100
Input Watts

144
lm/W

158
lm/W

151
lm/W

83
CRI

83
CRI

83
CRI

Part Number:

 Select: OAL4300SUS8
