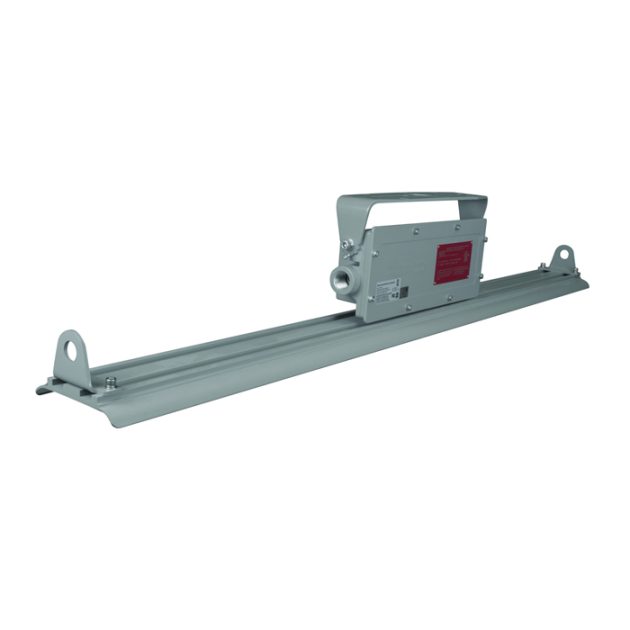

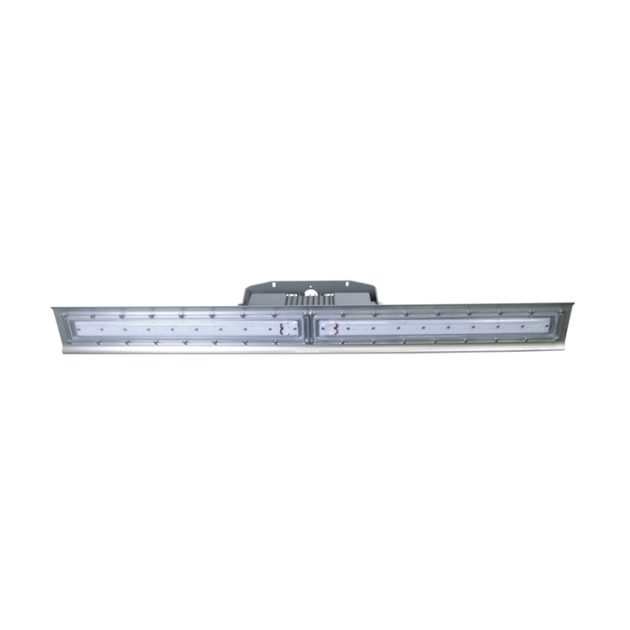

HAZARDOUS LOCATION LED LINEAR LUMINAIRE

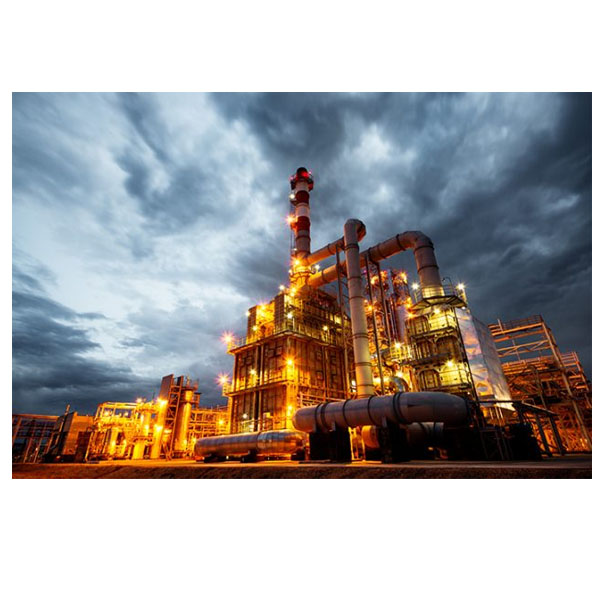

The Proteus Hazardous Location LED luminaire is designed for installations where moisture, dirt, corrosion and vibration may be present. For use in locations made hazardous by the presence of flammable vapors or gases as defined by the NEC, Proteus fixtures are available in classes C1D1 and C1D2 in 40W with a 2′ length or in 80W with a 4′ length. Proteus Series is ideal for retrofit of existing HPS/MH & FL and offers higher efficacy for increased energy savings, lower maintenance costs and shorter paybacks.



Category: Tags:

Specifications

  • Certifications: UL 844 & CSA22.2; Class I Division 2 Group A, B, C, D; UL1598A Marine (Salt Water), Wet Location; UL8750LED Safety; IECEx Ex nR II C T6 Gc; CSA C22.2 No. 137-M1981
  • Housing: Copper-free, die-cast aluminum
  • CCT: 4000K, 5000K
  • Input Voltage: 100-240/277 VAC
  • Surge Protection: Philips SP1 10kA surge protector
  • Operating temperature: -40° to 122°F (-40°C to 50°C)
  • Installation: Easy installation with three mounting options: Ceiling, Wall/Stanchion, and Hanging Chain. Included mounting bracket is drilled for legacy bolt patterns
  • Access Ports: Two at ¾” NPT
  • Finish: Gray polyester powder coat
  • FCC: Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions

Downloads

– Brochure

– C1D1 Spec Sheet
– C1D1 Installation Instructions

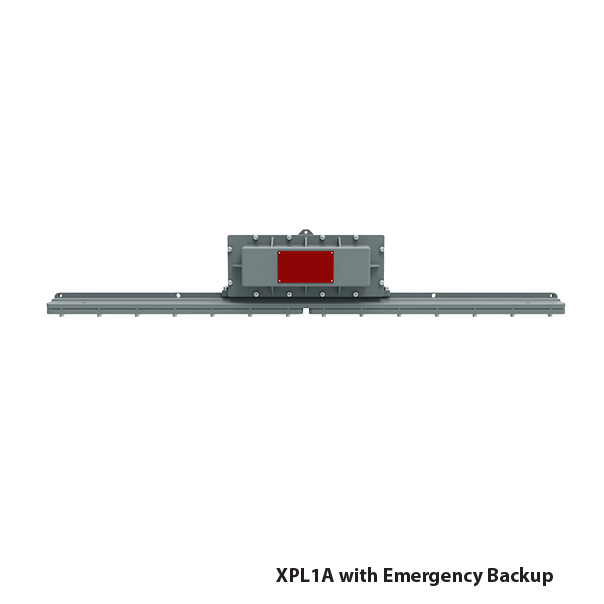

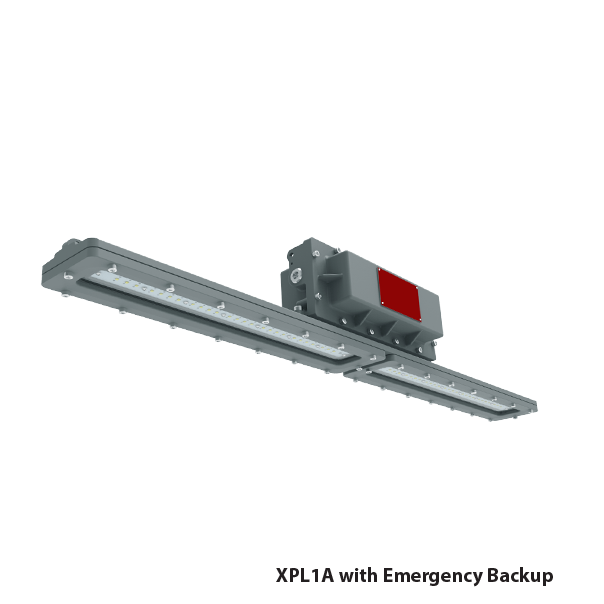

– C1D1 EM Installation Instructions

– C1D2 Spec Sheet
– C1D2 Installation Instructions

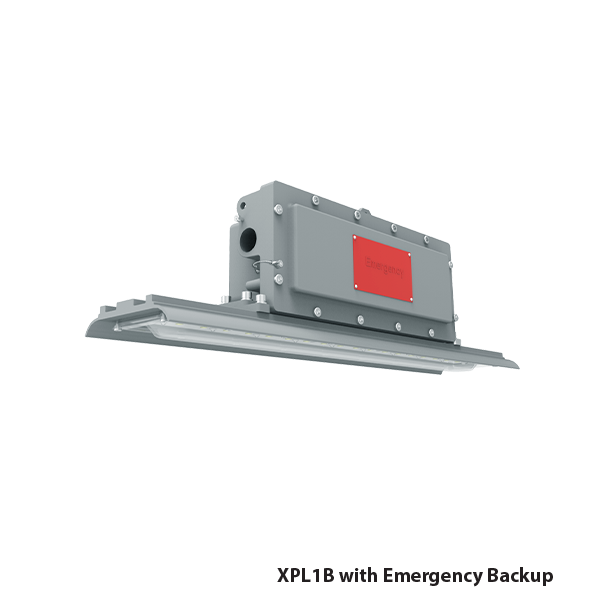

– C1D2 EM Installation Instructions

– ies Files

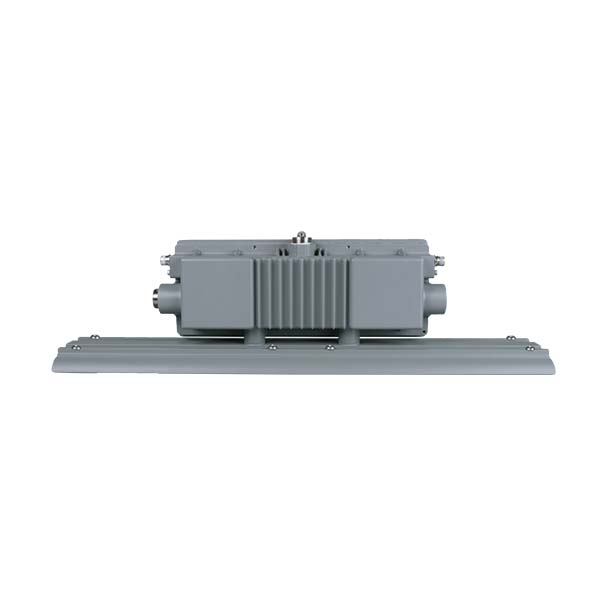

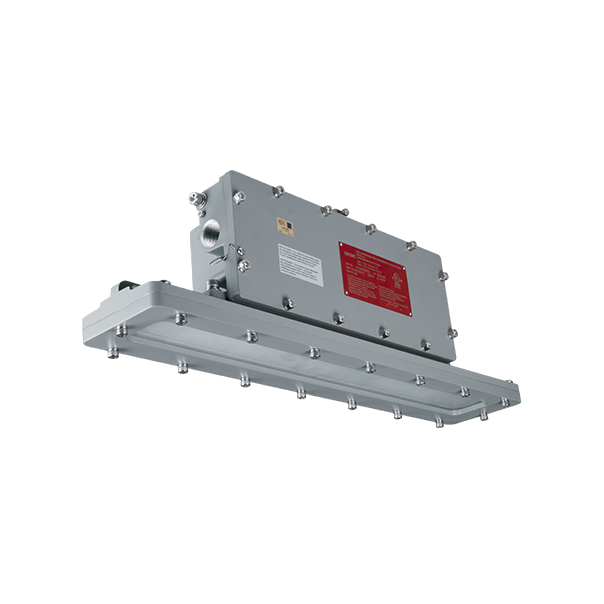

40 Watt - C1D1

3000K
Warm White		4000K
Neutral		5000K
Cool

4011
Lumens

4213
Lumens

4426
Lumens

38.1
Input Watts

38.1
Input Watts

38.1
Input Watts

105.3
lm/W

110.6
lm/W

116.3
lm/W

72
CRI

72
CRI

72
CRI

Part Numbers:

 3000K:XPL1A040U30GR
 4000K:XPL1A040U40GR
 5000K:XPL1A040U50GR

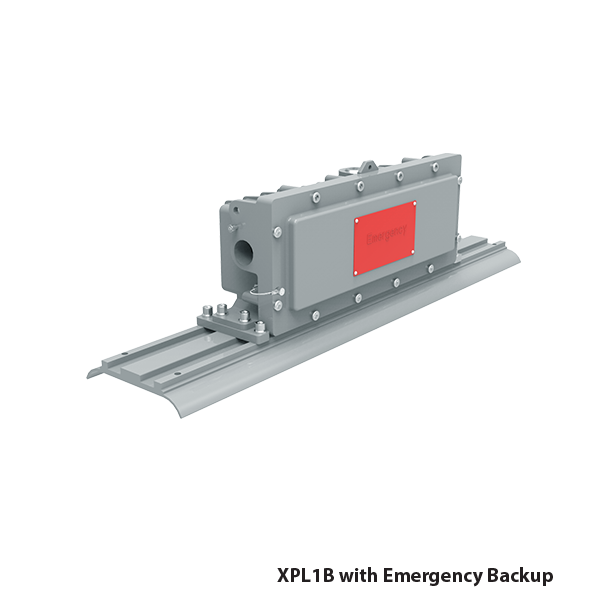

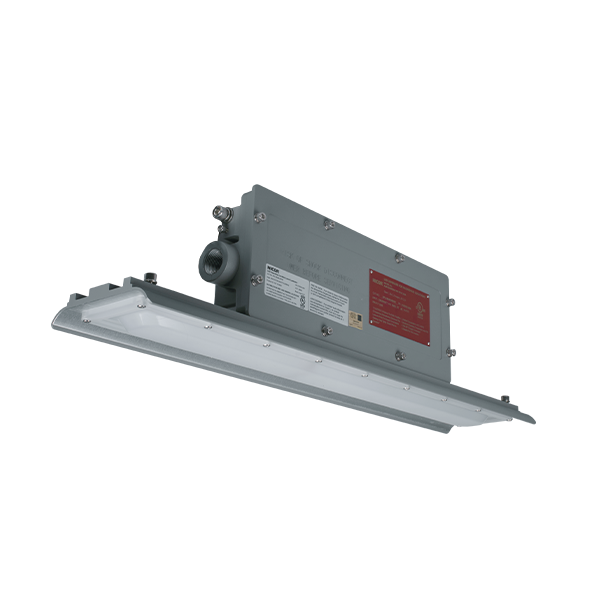

40 Watt - C1D2

3000K
Warm White		4000K
Neutral		5000K
Cool

5146
Lumens

5267
Lumens

5533
Lumens

41
Input Watts

41
Input Watts

41
Input Watts

125.8
lm/W

128.8
lm/W

135.3
lm/W

72
CRI

72
CRI

72
CRI

Part Numbers:

 3000K:XPL1B040U30GR
 4000K:XPL1B040U40GR
 5000K:XPL1B040U50GR

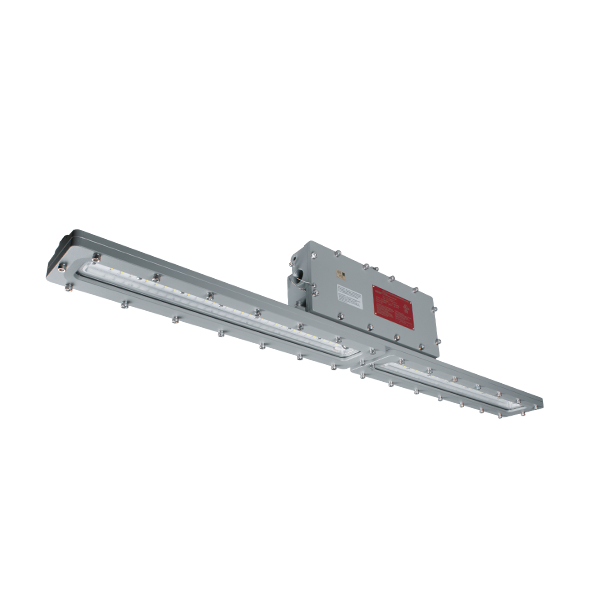

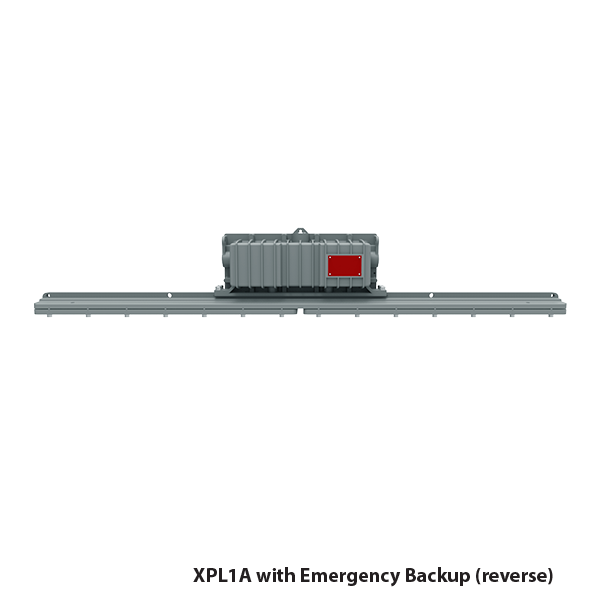

80 Watt - C1D1
3000K
Warm White		 4000K
Neutral		 5000K
Cool

8280
Lumens

8723
Lumens

9160
Lumens

80.8
Input Watts

80.8
Input Watts

80.8
Input Watts

102.5
lm/W

107.9
lm/W

113.4
lm/W

>70
CRI

>70
CRI

>70
CRI

Part Numbers:
3000K: XPL1A080U30GR
4000K: XPL1A080U40GR
5000K: XPL1A080U50GR

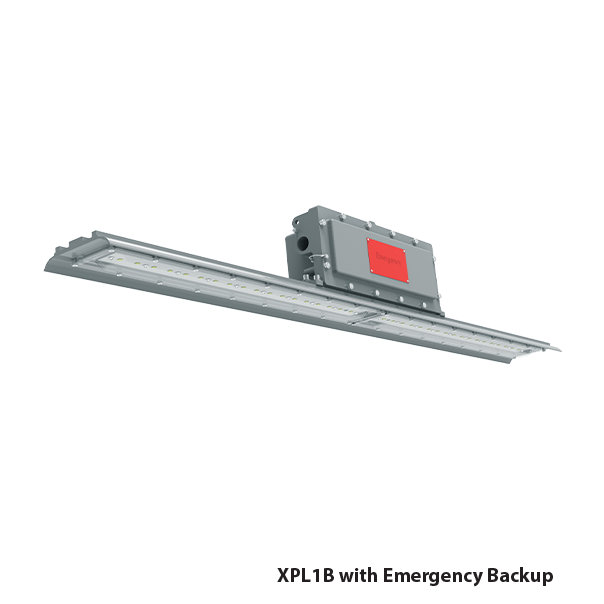

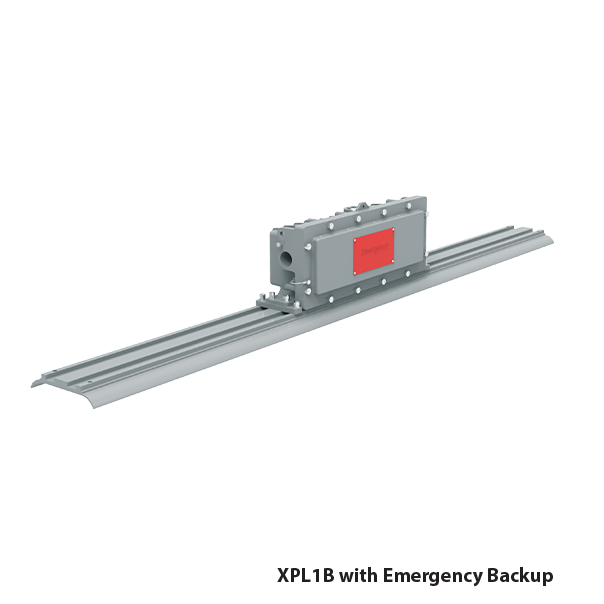

80 Watt - C1D2

3000K
Warm White		4000K
Neutral		5000K
Cool

10740
Lumens

10994
Lumens

11548
Lumens

80
Input Watts

80
Input Watts

80
Input Watts

133.7
lm/W

136.9
lm/W

143.8
lm/W

72
CRI

72
CRI

72
CRI

Part Numbers:

 3000K:XPL1B080U30GR
 4000K:Discontinued
 5000K:XPL1B080U50GR
40 Watt - C1D1



3000K
Warm White		4000K
Neutral		5000K
Cool

4011
Lumens

4213
Lumens

4426
Lumens

38.1
Input Watts

38.1
Input Watts

38.1
Input Watts

105.3
lm/W

110.6
lm/W

116.3
lm/W

72
CRI

72
CRI

72
CRI

Part Numbers:

 3000K:XPL1A040U30GR
 4000K:XPL1A040U40GR
 5000K:XPL1A040U50GR

40 Watt - C1D2



3000K
Warm White		4000K
Neutral		5000K
Cool

5146
Lumens

5267
Lumens

5533
Lumens

41
Input Watts

41
Input Watts

41
Input Watts

125.8
lm/W

128.8
lm/W

135.3
lm/W

72
CRI

72
CRI

72
CRI

Part Numbers:

 3000K:XPL1B040U30GR
 4000K:XPL1B040U40GR
 5000K:XPL1B040U50GR

80 Watt - C1D1



3000K
Warm White		4000K
Neutral		5000K
Cool

8280
Lumens

8723
Lumens

9160
Lumens

80.8
Input Watts

80.8
Input Watts

80.8
Input Watts

102.5
lm/W

107.9
lm/W

113.4
lm/W

>70
CRI

>70
CRI

>70
CRI

Part Numbers:

 3000K:XPL1A080U30GR
 4000K:XPL1A080U40GR
 5000K:XPL1A080U50GR

80 Watt - C1D2
3000K
Warm White		 4000K
Neutral		 5000K
Cool

10740
Lumens

10994
Lumens

11548
Lumens

80
Input Watts

80
Input Watts

80
Input Watts

133.7
lm/W

136.9
lm/W

143.8
lm/W

72
CRI

72
CRI

72
CRI

Part Numbers:
3000K: XPL1B080U30GR
4000K: Discontinued
5000K: XPL1B080U50GR
