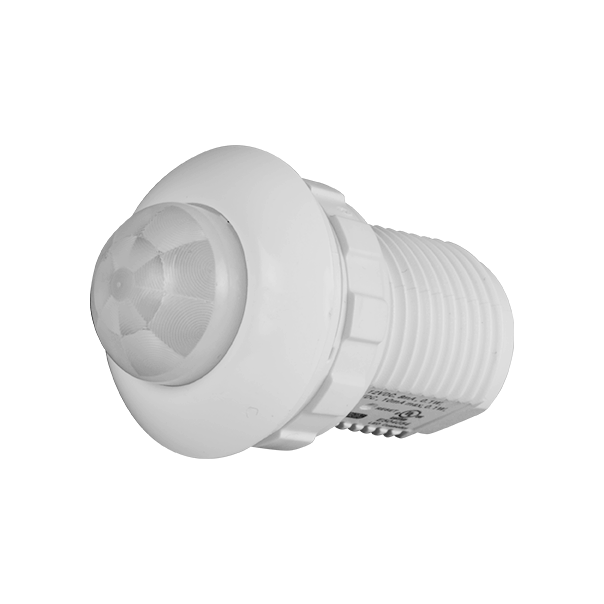

WIRELESS INTEGRATED LOW-VOLTAGE PIR/DAYLIGHT SENSOR

The NLCSPIHW1WH is an integrated low-voltage Bluetooth wireless PIR/Daylight sensor. It provides 360° coverage at heights ranging from 8′ to 15′ with a coverage diameter of 48′ (when mounted at a 15′ height). Setup and commissioning requires the NICOR NLC mobile app (Android/iPhone).

The NLCPS1 can be secured directly to any ½” knockout using the threaded nut included.



Category: Tag:

Specifications

  • Bluetooth Low-Energy Mesh Network
  • Controlled with the NLC App for both iOS and Android smartphones
  • Bluetooth can be transmitted up to 100ft
  • BLE 4.2 MESH IEEE 802.15.1
  • Input voltage of 12V
  • Operating temperature rating of -22°F to 131°F (-30°C to 55C)



Part Number:

NLCSPIHW1WH

Downloads

Spec Sheet
