LED AREA LIGHT

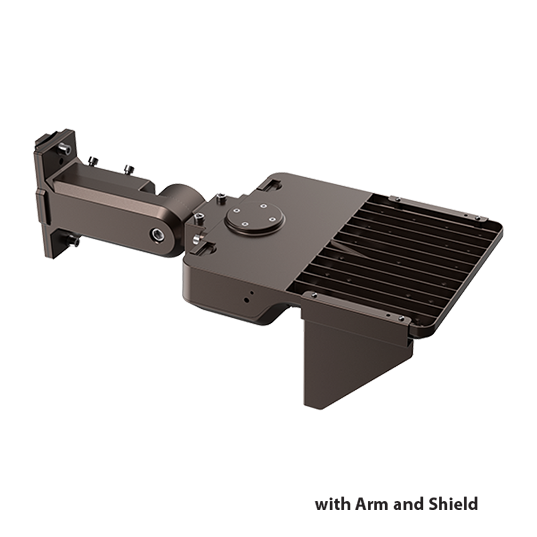

The OAL5 LED Area Light delivers high efficiency with maximum energy savings and advanced controls to suit a variety of applications. Its robust, low-profile housing is comprised of die-cast aluminum and includes an adjustable, multi-function mounting arm (pole + slipfitter) for simpler, quicker installation. The OAL5 is a versatile fixture offering 50/60/80W selectability with 3/4/5K CCT and distribution options of Type II, III, IV and V. It is ideal for lower mounting heights in parking lots, recreational or public venues, walkways, campuses, and other commercial environments.



Category: Tags:

Specifications

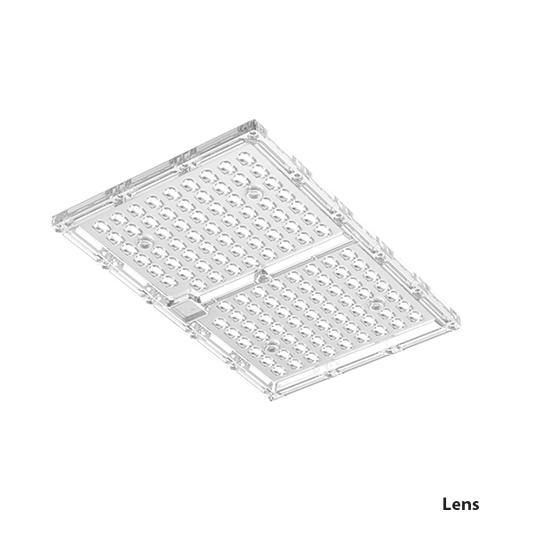

  • Impact resistant polycarbonate lens
  • Type II, III, IV or V distribution available
  • Selectable CCT of 3000/4000/5000K
  • Standard 80+ CRI to improve safety and color definition in public places
  • BUG rating of B3-U0-G3 (Type II, III, IV) B3-U0-G1 (Type V)
  • Wattage selectable 50/60/80W
  • Input voltage of 120-277VAC or 277-480VAC
  • Surge protection 10kV (20kV on HV models) provides single phase protection for:
    • line/neutral
    • line/ground
    • neutral/ground
    • All in accordance with IEEE C62.41 2002 C High category
  • Operating temperature rating of -40° to 120°F (-40°C to 50°C)

Downloads

– Sell Sheet

– Spec Sheet
– Installation Instructions

– ies Files

OAL5 - 80W Type III Optic
3000K
Warm White		4000K
Neutral		5000K
Cool

6794/8153/10,870
Lumens

7436/8923/11,898
Lumens

7102/8522/11,363
Lumens

50/60/80
Input Watts

50/60/80
Input Watts

50/60/80
Input Watts

129/131/135
lm/W

145/147/154
lm/W

135/137/143
lm/W

83
CRI

83
CRI

83
CRI

Part Number:

 Select: OAL5080SUS
