WIRELESS CONTROL SWITCH

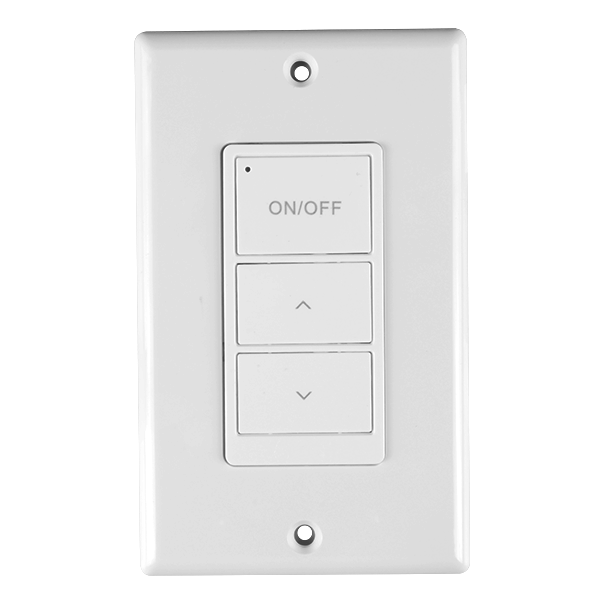

The NLC Bluetooth Wireless Wall Switch Series offers two unique switch designs in 3-button and 5-button configurations. Both provide wireless remote control of NLC enabled luminaires as a handheld device or wall-mounted switch. Setup and commissioning requires the NICOR NLC mobile app  available on Android and iPhone(iOS) devices. For wall mounting, add the NLCWP1WH wall switch base with faceplate.



Category: Tag:

Specifications

  • Bluetooth enabled for both iOS and Android smartphone
  • Linkable with one or multiple luminaire groups
  • Bluetooth transmission up to 100'
  • BLE 4.2 MESH IEEE 802.15.1
  • Input voltage of 3V
  • Powered by two CR2032 3 Volts batteries
  • Low Power Warning:2.6V
  • Operating temperature rating of -14ºF to 113ºF (-10ºC to 45ºC)
  • Operating humidity of 0 - 90% RH



Part Numbers:

NLCW31WH - 3 Button Configuration

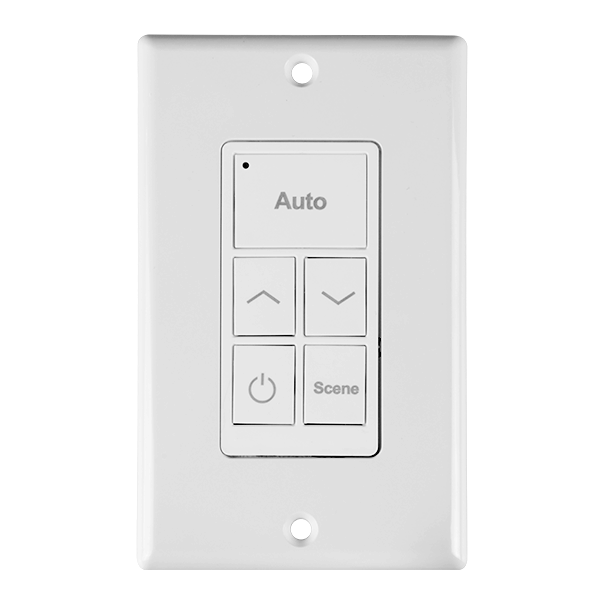

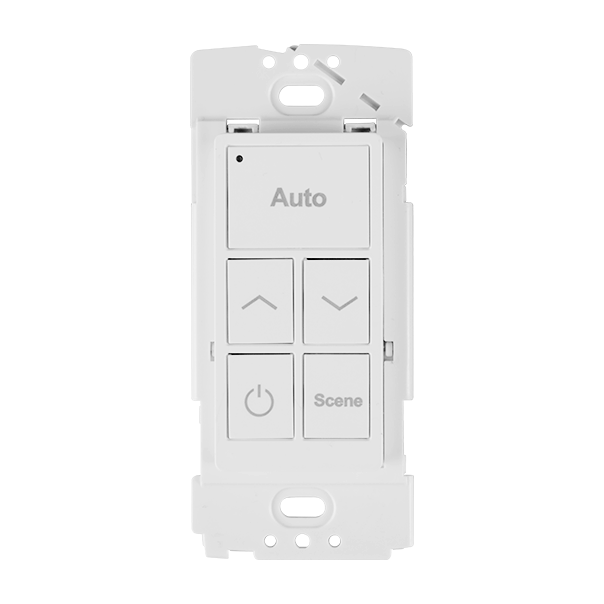

NLCW51WH - 5 Button Configuration

Downloads

– Spec Sheet
– Installation Instructions
