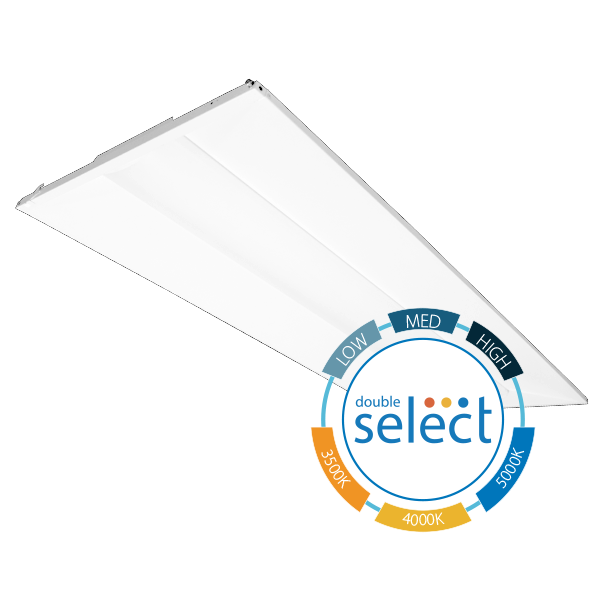

SELECTABLE ARCHITECTURAL LED TROFFER

The TARSv2 Architectural LED Troffer Retrofit provides an economical, easy-to-install upgrade from linear fluorescent lighting to a long-lasting and energy-efficient LED solution. The contemporary center lens design delivers a soft natural glow with even illumination and minimized glare, making it an attractive general-purpose ambient lighting solution. The TARSv2 also features a pre-mounted driver with a high-efficiency, maintenance-free LED chamber. Whether in a school, hospital, airport, office or convenience store, NICOR LED troffers bring a stylish and economical lighting solution to all commercial, educational, medical, and retail applications. The CCT and Wattage Selectable design allows for easy adjustment to 3500K/4000K/5000K and a choice of high, medium, or standard light output.

Specifications

  • Precision engineered PMMA diffuser
  • No visible diodes, hot-spots, or shadows providing high uniformity, and reduced glare
  • Long-life LED system coupled with electrical driver to deliver optimal performance with 125+ lumens per watt depending on CCT
  • Selectable lumen and CCT output
  • Driver delivers full-range dimming from 1 - 10VDC
  • Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
  • Input voltage of 120-277VAC
TARS2 - 1x4
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

3908/3329/2727
Lumens

4140/3664/3068
Lumens

3930/3341/2739
Lumens

31/25/20
Input Watts

31/25/20
Input Watts

31/25/20
Input Watts

126/131/135
lm/W

133/144/152
lm/W

126/132/136
lm/W

81
CRI

81
CRI

81
CRI

Part Number:

 Select:TARS214U
TARS2 - 2x2
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

3915/3350/2707
Lumens

4158/3694/3030
Lumens

3944/3383/2735
Lumens

31/25/20
Input Watts

31/25/20
Input Watts

31/25/20
Input Watts

128/132/135
lm/W

135/146/151
lm/W

129/134/136
lm/W

82
CRI

82
CRI

82
CRI

Part Number:

 Select:TARS222U
TARS2 - 2x4

3500K
Warm Neutral
4000K
Neutral
5000K
Cool

6006/5265/4628
Lumens

6433/5790/5171
Lumens

6119/5332/4693
Lumens

46/38/34
Input Watts

46/38/34
Input Watts

46/38/34
Input Watts

130/137/138
lm/W

140/151/154
lm/W

133/139/140
lm/W

82
CRI

82
CRI

82
CRI

Part Number:

 Select:TARS224U
TARS2 - 1x4
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

3908/3329/2727
Lumens

4140/3664/3068
Lumens

3930/3341/2739
Lumens

31/25/20
Input Watts

31/25/20
Input Watts

31/25/20
Input Watts

126/131/135
lm/W

133/144/152
lm/W

126/132/136
lm/W

81
CRI

81
CRI

81
CRI

Part Number:

 Select:TARS214U

TARS2 - 2x2
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

3915/3350/2707
Lumens

4158/3694/3030
Lumens

3944/3383/2735
Lumens

31/25/20
Input Watts

31/25/20
Input Watts

31/25/20
Input Watts

128/132/135
lm/W

135/146/151
lm/W

129/134/136
lm/W

82
CRI

82
CRI

82
CRI

Part Number:

 Select:
TARS222U

TARS2 - 2x4
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

6006/5265/4628
Lumens

6433/5790/5171
Lumens

6119/5332/4693
Lumens

46/38/34
Input Watts

46/38/34
Input Watts

46/38/34
Input Watts

130/137/138
lm/W

140/151/154
lm/W

133/139/140
lm/W

82
CRI

82
CRI

82
CRI

Part Number:

Select:
TARS224U
