CAST ALUMINUM EXIT SIGN

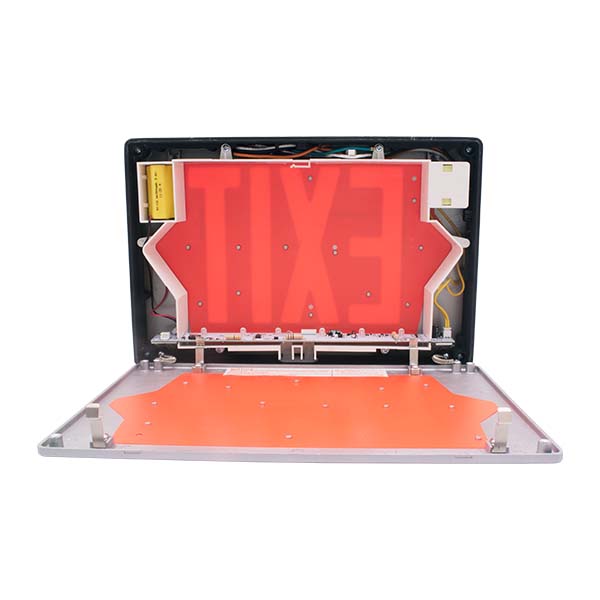

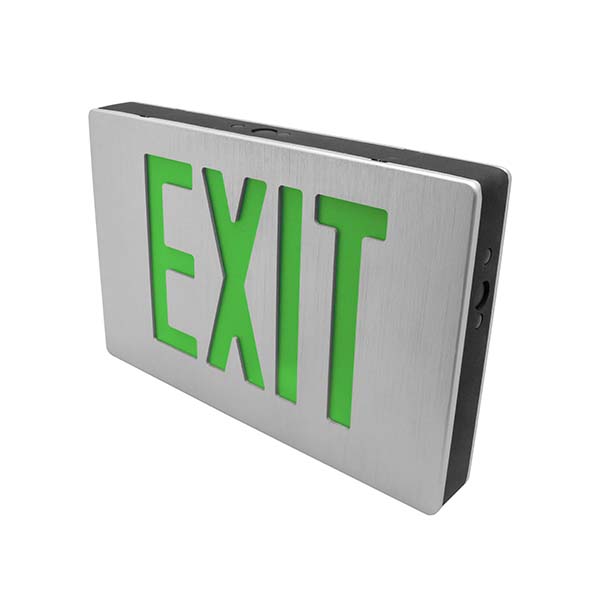

The EXL6 Series is a classic, robust design that offers self diagnostic testing and reporting. This UL924 compliant sign is constructed of a cast aluminum housing and faceplates. High output LEDs deliver an evenly illuminated exit sign and the maintenance-free, nickel-cadmium battery provides reliable performance and long life. The EXL6 Series offers flexible installation for surface ceiling, wall or end mount options along with field adjustable chevrons for universal configuration based on your application’s directional needs.

Category: Tags:

Specifications

  • LED light engine provides consistently bright, even EXIT legend illumination with red or green LEDs
  • 120/277VAC Dual Voltage Operation, 60Hz input
  • Fully-illuminated 6” letter height with ¾” stroke
  • Operating temperature rating of 50°F to 104°F (10°C to 40°C)
  • Premium grade Ni-Cad rechargeable battery
  • 90 minute capacity
  • Self Diagnostic model automatically tests and reports on fixture status.



Part Numbers:

EXL610UNVALBKRSD - Black Frame with Aluminum Face - Red Text
EXL610UNVALBKGSD - Black Frame with Aluminum Face - Green Text

EXL610UNVWHALRSD - Aluminum Frame with White Face - Red Text
EXL610UNVWHALGSD - Aluminum Frame with White Face - Green Text

EXL610UNVWHWHRSD - White Frame with White Face - Red Text
EXL610UNVWHWHGSD - White Frame with White Face - Green Text

Downloads

– EM Catalog
– Sell Sheet
– Spec Sheet
– Installation Instructions
