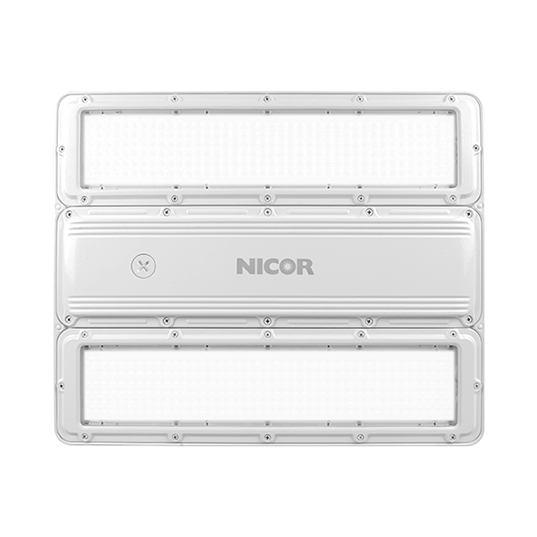

NSF RATED LED HIGH BAY

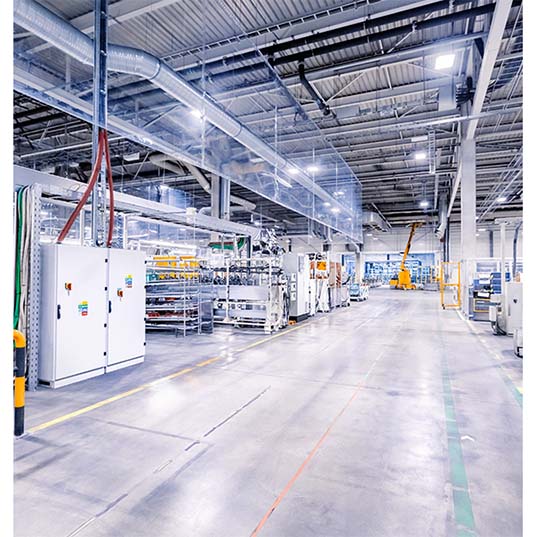

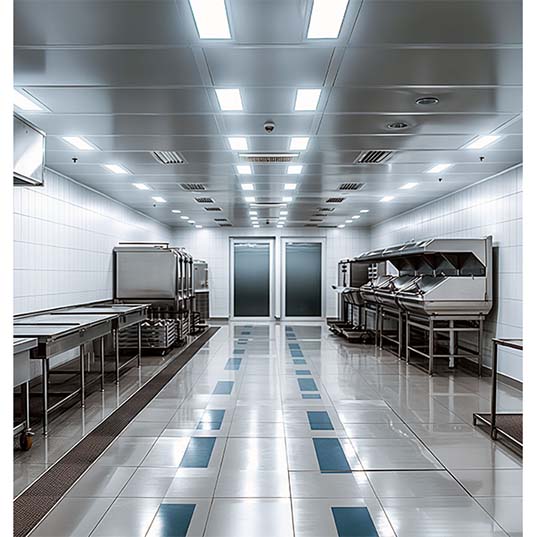

Introducing NICOR’s new NSF Rated High Bay, designed for optimal performance in commercial and industrial environments. This fixture combines energy efficiency with robust construction, making it ideal for warehouses, food processing facilities, and manufacturing plants. With NSF certification, it ensures compliance with stringent safety and sanitation standards, perfect for food and beverage processing areas. Featuring an IP69 rating, it offers exceptional protection against dust and high-pressure, high temperature water jets, making it suitable for even the most demanding environments. Equipped with selectable wattage and color temperature (CCT), you can easily customize the lighting to suit your specific needs, providing flexibility and efficiency. Its durable design withstands harsh conditions, ensuring longevity and reliability, while versatile mounting options allow for easy adaptation to various ceiling heights and layouts. The user-friendly design facilitates quick installation with minimal downtime, and it is compatible with smart controls for enhanced energy savings and control. Elevate your facility’s lighting with our NSF Rated High Bay, where performance meets compliance and efficiency, creating a safe and productive environment.



* On Polycarbonate Lens



Specifications

  • Rated to withstand extreme temperatures from -40°C to 65°C (-40°F to 149°F)
  • NSF Certified Food Zone, Splash Zone, & Non-Food Zone
  • IP69K Rated against high-pressure & high temperature washdown
  • IK10 rated with polycarbonate lens (IK06 with glass lens)
  • Meets DLC 5.1 Premium requirements

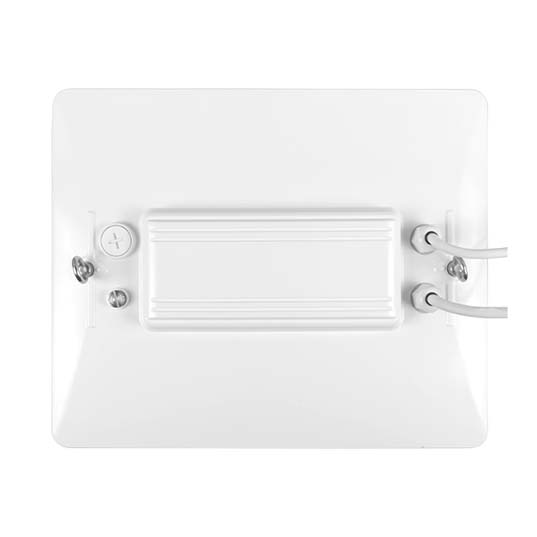

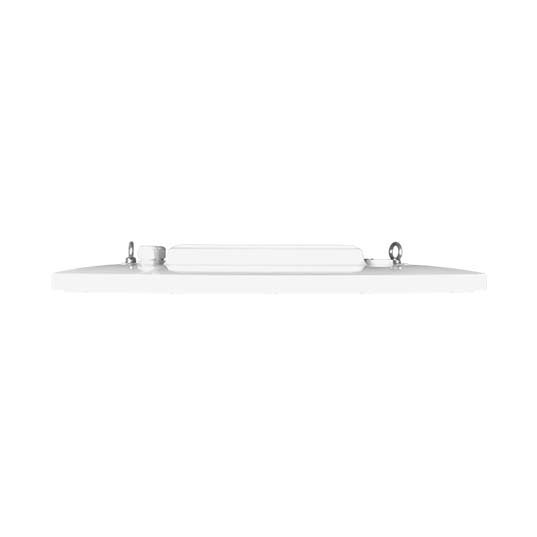

  • Single-piece, die-cast aluminum housing

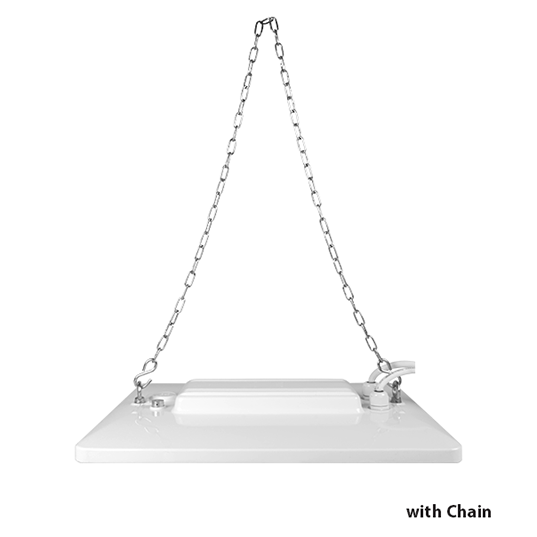

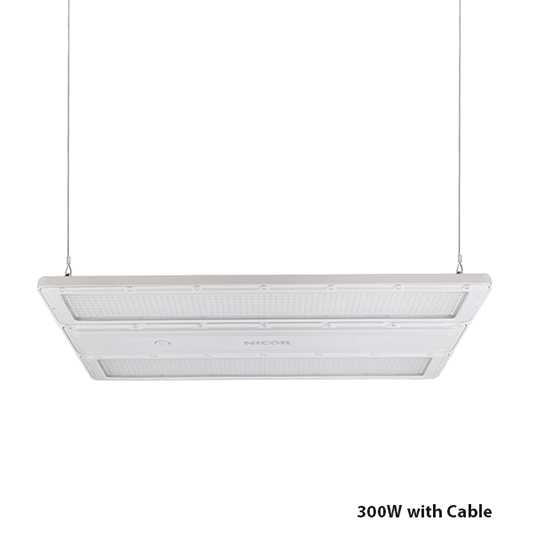

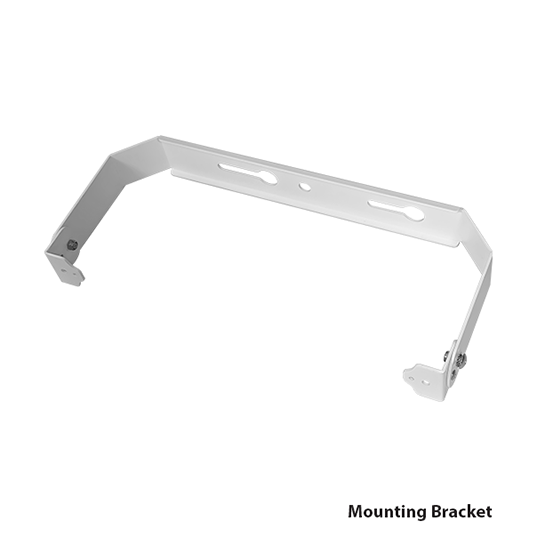

  • Mounting rings, chains, and sealed power cords included
  • 120-347VAC input voltage to cover a wide range of applications
  • Surge Protection with supplemental SPD: L/N-PE: 10kV, L-N: 10kV

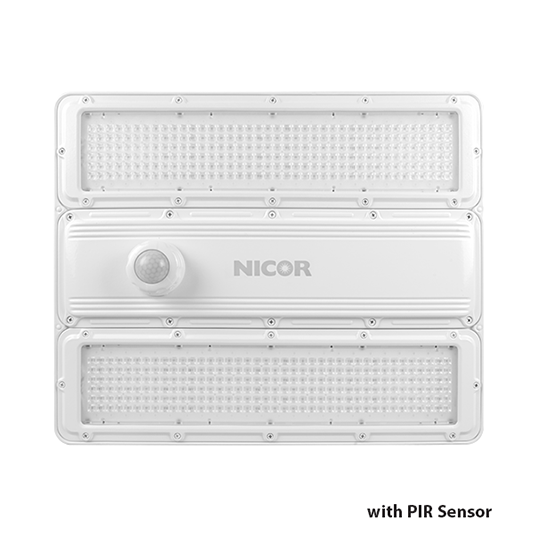

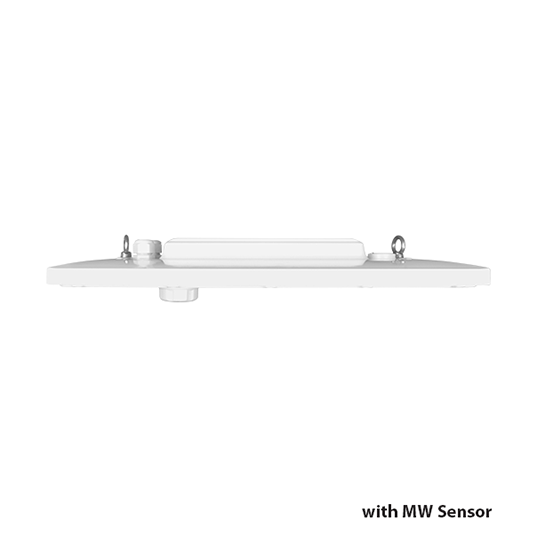

  • Integrated 12V accessory port to easily add controls

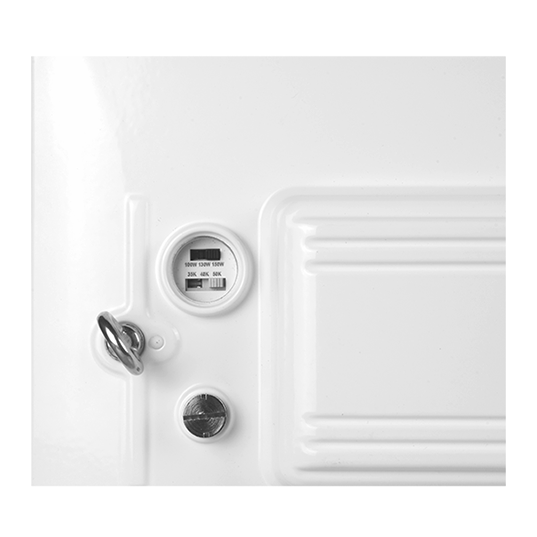

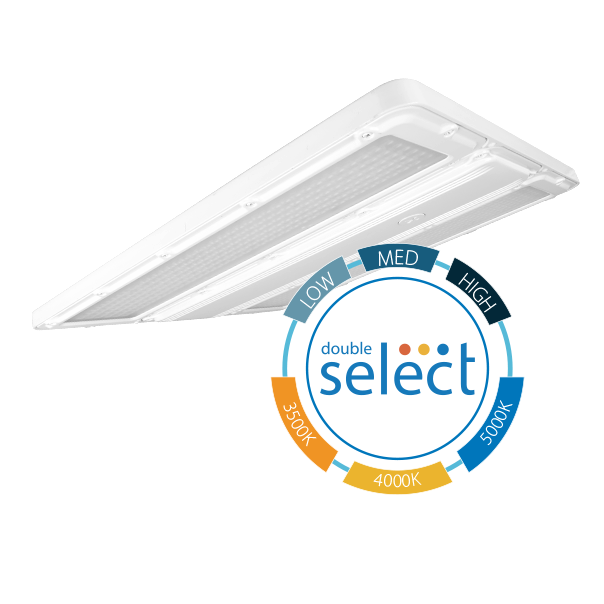

  • Selectable Wattage options:
    • 150W Model (150W-130W-100W)
    • 300W Model (300W-270W-240W)
  • Selectable color temperatures:
    • 3500K-4000K-5000K
HBN 150W
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

16,495/21,342/24,384
Lumens

 16,894/21,859/24,974
Lumens

 16,260/21,039/24,038
Lumens

100/130/150
Input Watts

100/130/150
Input Watts

100/130/150
Input Watts

~163
lm/W

~174
lm/W

~168
lm/W

83
CRI

83
CRI

83
CRI

Part Number:

 All:HBN1150SUSA8

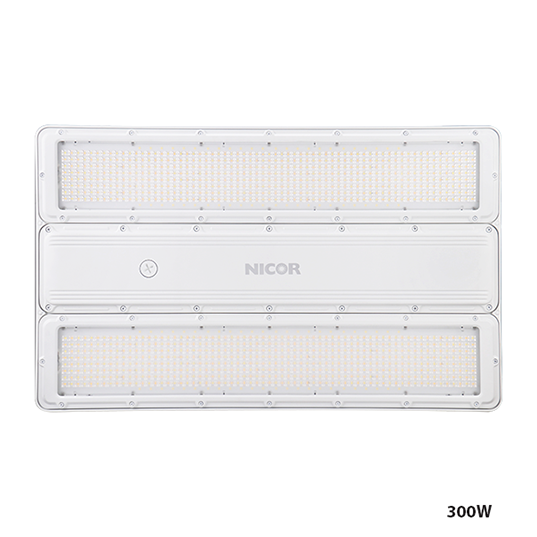

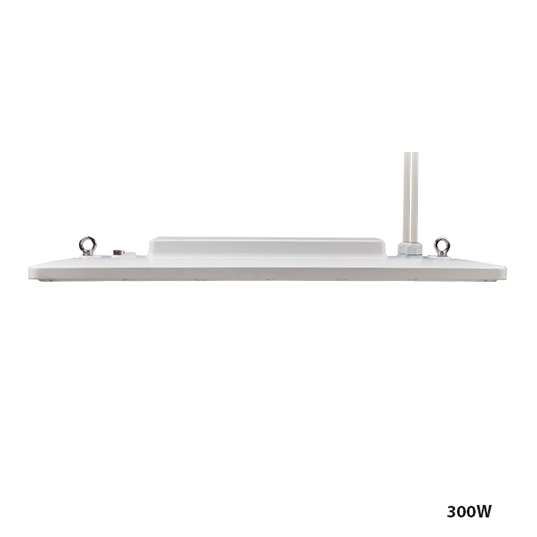

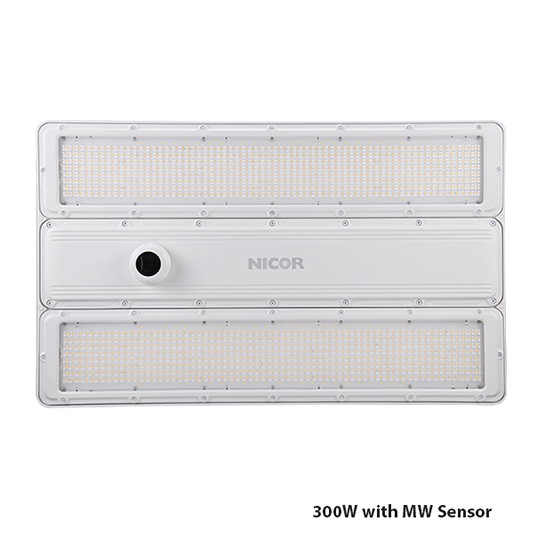

HBN 300W
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

39,835/43,693/47,854
Lumens

 40,718/45,026/49,609
Lumens

  39,735/43,887/48,745
Lumens

240/270/300
Input Watts

240/270/300
Input Watts

240/270/300
Input Watts

~162
lm/W

~174
lm/W

~164
lm/W

84
CRI

84
CRI

84
CRI

Part Number:

 All:HBN1300SUSA8
HBN 150W
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

16,495/21,342/24,384
Lumens

 16,894/21,859/24,974
Lumens

 16,260/21,039/24,038
Lumens

100/130/150
Input Watts

100/130/150
Input Watts

100/130/150
Input Watts

~163
lm/W

~174
lm/W

~168
lm/W

83
CRI

83
CRI

83
CRI

Part Number:

 All:HBN1150SUSA8

HBN 300W
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

38,283/43,069/47,854
Lumens

 39,288/44,169/49,098
Lumens

 38,762/43,643/48,476
Lumens

240/270/300
Input Watts

240/270/300
Input Watts

240/270/300
Input Watts

~160
lm/W

~164
lm/W

~162
lm/W

84
CRI

84
CRI

84
CRI

Part Number:

 All:HBN1300SUSA8
