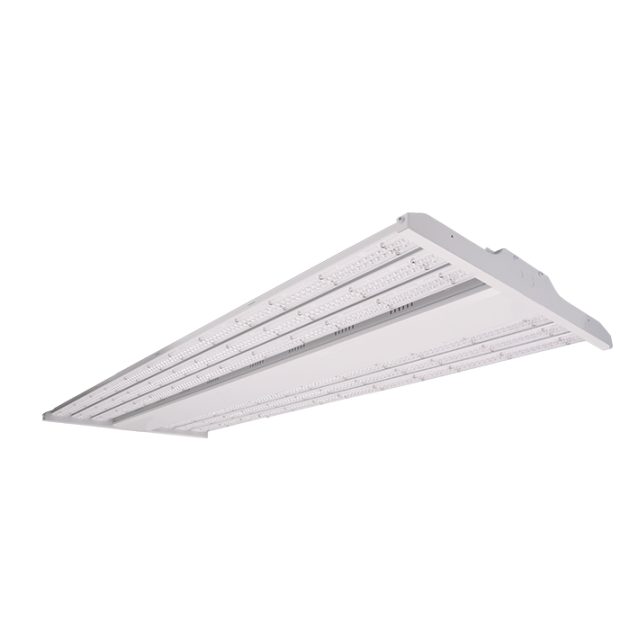

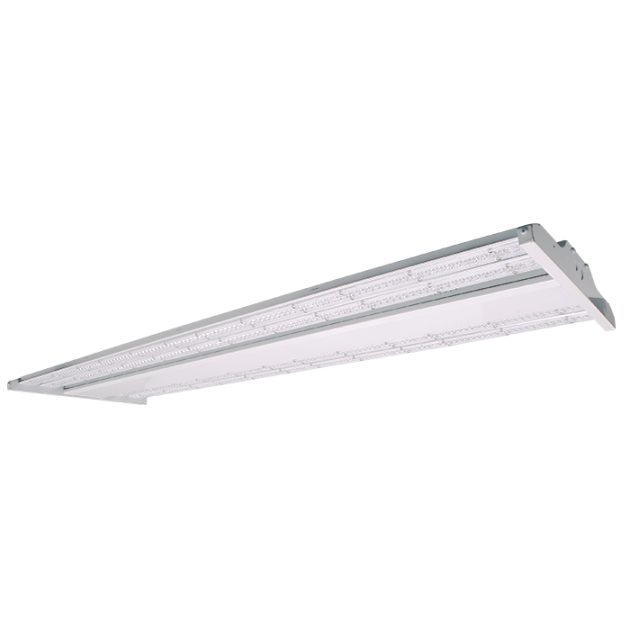

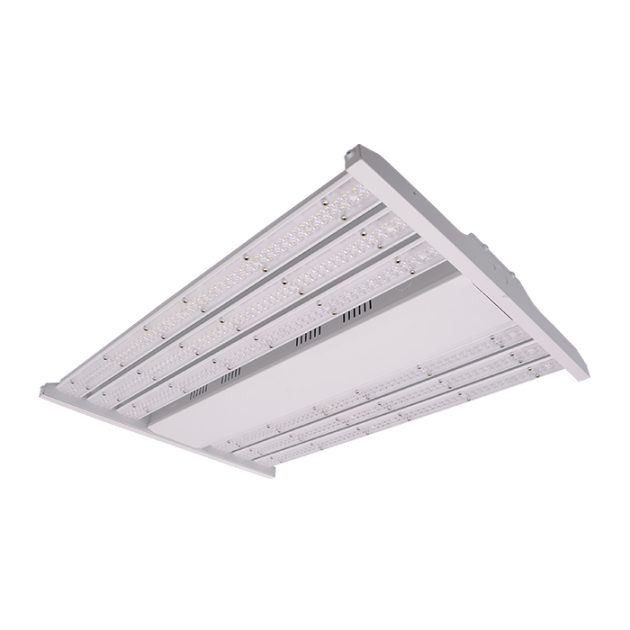

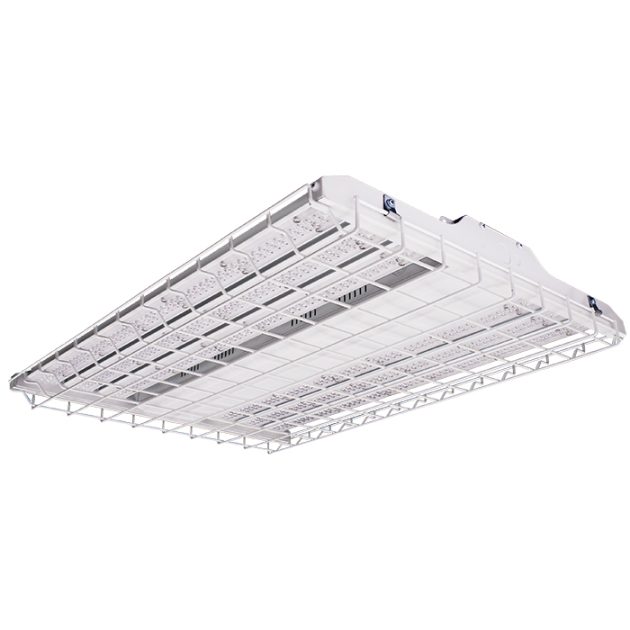

LED LINEAR LOW BAY/HIGH BAY

The HBG1 LED Linear Low Bay/High Bay provides exceptional quality and energy efficiency with up to 180 lumens per watt. The HBG1 is the solution for a wide variety of applications including warehousing, manufacturing, gymnasiums, manufacturing facilities and other large scale spaces. With precision designed optics available in multiple distributions, a choice of lumen outputs and two color temperatures, the HBG1 is the ideal solution for all areas of your application. The rectangular Aisle Optic illumination pattern fits aisles perfectly, reducing the overall number of fixtures required. Suggested mounting heights are from 15′ up to 50′ and floor plans of open and/or stack aisle applications.



Order Yours Now!

Category: Tags:

Specifications

  • Long-life LED system coupled with electrical driver to deliver optimal performance up to 180 lumens per watt
  • Utilizes advanced LED technology with CCT of 4000K and 5000K with 70 or 80 CRI
  • Operating temperature rating of -4ºF to 122ºF (-20ºC to 50ºC) when mounted minimum 18” from ceiling
  • Input voltage of 120-277V, standard
  • Power factor >0.9 PF
  • Industry leading 10kA surge protection standard, per ANSI C82.77-5-2015
  • Dimming: 0-10V standard, dimming down to 10% or less with specified dimmers
  • Available with a PIR sensor option to meet ASHRAE 90.1 energy efficiency requirements
  • Available with optional microwave sensor
  • All EM packs certified per CA Title 20

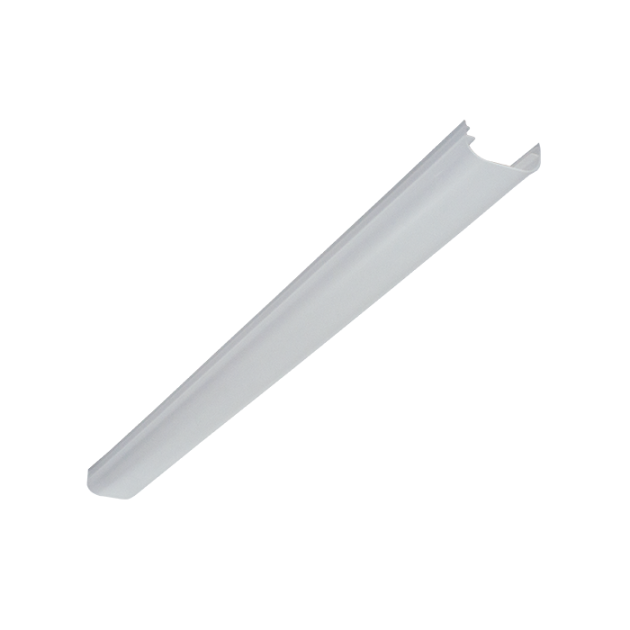

  • Three optical systems to choose from: Aisle Lens, Diffuse Lens and No Lens
  • Precision injection molded Aisle Optic provides exceptional illumination for aisle warehouse applications with a rectangular luminous shape
  • For maximum efficiency the HBG1 is also available with a No Lens option

Downloads

– Warehouse Lighting - Highbay Family Brochure
– Agriculture Lighting - Highbay Family Brochure
– HBG1 Brochure
– Spec Sheet
– Installation Instructions

HBG1 - 102 Watts with Aisle (A) Lens
4000K
Neutral		5000K
Cool

16325
Lumens

16371
Lumens

102
Input Watts

102
Input Watts

160.7
lm/W

161.1
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K: Discontinued
 5000K: HBG116U508A
HBG1 - 102 Watts with Diffused (D) Lens
4000K
Neutral		5000K
Cool

15684
Lumens

15794
Lumens

102
Input Watts

102
Input Watts

154.4
lm/W

155.5
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K: Discontinued
 5000K: Discontinued
HBG1 - 102 Watts with No (N) Lens
4000K
Neutral		5000K
Cool

17378
Lumens

17515
Lumens

102
Input Watts

102
Input Watts

171.0
lm/W

172.4
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K: Discontinued
 5000K: Discontinued
HBG1 - 145 Watts with Aisle (A) Lens
4000K
Neutral		5000K
Cool

23266
Lumens

23326
Lumens

145
Input Watts

145
Input Watts

160.1
lm/W

160.4
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K: HBG123U408A
 5000K: HBG123U508A
HBG1 - 145 Watts with Diffused (D) Lens
4000K
Neutral		5000K
Cool

22499
Lumens

22663
Lumens

145
Input Watts

145
Input Watts

154.8
lm/W

156.0
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K: HBG123U408D
 5000K: HBG123U508D
HBG1 - 145 Watts with No (N) Lens
4000K
Neutral		5000K
Cool

24654
Lumens

24813
Lumens

145
Input Watts

145
Input Watts

169.7
lm/W

170.8
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K: Discontinued
 5000K: Discontinued
HBG1 - 204 Watts with Aisle (A) Lens
4000K
Neutral		5000K
Cool

32854
Lumens

33219
Lumens

204
Input Watts

204
Input Watts

160.7
lm/W

162.5
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K: HBG133U408A
 5000K: HBG133U508A
HBG1 - 204 Watts with Diffused (D) Lens
4000K
Neutral		5000K
Cool

32231
Lumens

32396
Lumens

204
Input Watts

204
Input Watts

157.7
lm/W

158.5
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K: HBG133U408D
 5000K: HBG133U508D
HBG1 - 204 Watts with No (N) Lens
4000K
Neutral		5000K
Cool

35268
Lumens

35446
Lumens

204
Input Watts

204
Input Watts

172.5
lm/W

173.4
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K: Discontinued
 5000K: HBG133U508N
HBG1 - 102 Watts with Aisle (A) Lens
4000K
Neutral		5000K
Cool

16325
Lumens

16371
Lumens

102
Input Watts

102
Input Watts

160.7
lm/W

161.1
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K:Discontinued
 5000K:HBG116U508A

HBG1 - 102 Watts with Diffused (D) Lens
4000K
Neutral		5000K
Cool

15684
Lumens

15794
Lumens

102
Input Watts

102
Input Watts

154.4
lm/W

155.5
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K:Discontinued
 5000K:Discontinued

HBG1 - 102 Watts with No (N) Lens
4000K
Neutral		5000K
Cool

17378
Lumens

17515
Lumens

102
Input Watts

102
Input Watts

171.0
lm/W

172.4
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K:Discontinued
 5000K:Discontinued

HBG1 - 145 Watts with Aisle (A) Lens
4000K
Neutral		5000K
Cool

23266
Lumens

23326
Lumens

145
Input Watts

145
Input Watts

160.1
lm/W

160.4
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K:HBG123U408A
 5000K:HBG123U508A

HBG1 - 145 Watts with Diffused (D) Lens
4000K
Neutral		5000K
Cool

22499
Lumens

22663
Lumens

145
Input Watts

145
Input Watts

154.8
lm/W

156.0
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K:HBG123U408D
 5000K:HBG123U508D

HBG1 - 145 Watts with No (N) Lens
4000K
Neutral		5000K
Cool

24654
Lumens

24813
Lumens

145
Input Watts

145
Input Watts

169.7
lm/W

170.8
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K:Discontinued
 5000K:Discontinued

HBG1 - 204 Watts with Aisle (A) Lens
4000K
Neutral		5000K
Cool

32854
Lumens

33219
Lumens

204
Input Watts

204
Input Watts

160.7
lm/W

162.5
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K:HBG133U408A
 5000K:HBG133U508A

HBG1 - 204 Watts with Diffused (D) Lens
4000K
Neutral		5000K
Cool

32231
Lumens

32396
Lumens

204
Input Watts

204
Input Watts

157.7
lm/W

158.5
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K:HBG133U408D
 5000K:HBG133U508D

HBG1 - 204 Watts with No (N) Lens
4000K
Neutral		5000K
Cool

35268
Lumens

35446
Lumens

204
Input Watts

204
Input Watts

172.5
lm/W

173.4
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K:Discontinued
 5000K:HBG133U508N
