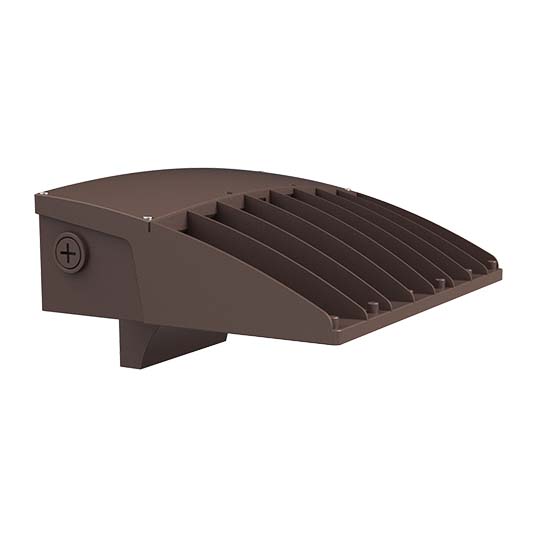

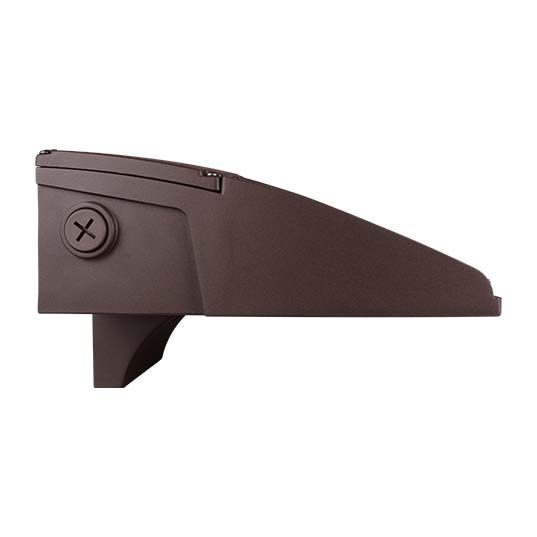

FULL CUT OFF LED WALL PACK

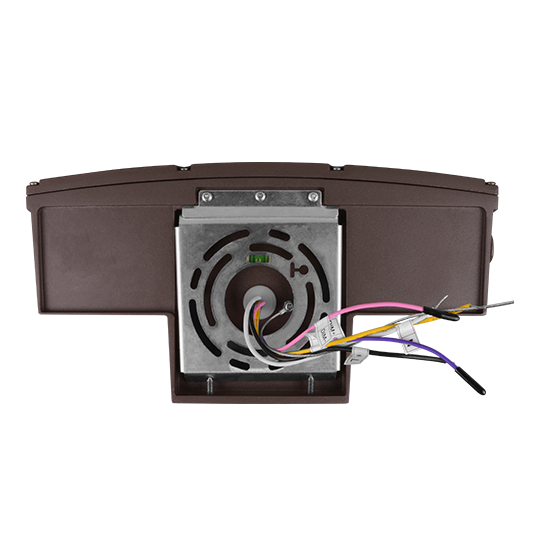

The Full Cut-Off LED Wall Pack features a modern, architectural style with optimal performance. With an output up to 15,000 lumens, the OWP delivers tailored light distribution with available Type 2, 3, or 4 precision lenses. It is easy to install on walls or directly on a J-Box with its included mounting bracket and it has two knockouts for through-wiring. Easily accessible switches offers the ability to adjust the CCT and wattage. The OWP is suitable for perimeter lighting as well as building entrances, walkways, or other commercial spaces where general- purpose lighting is desired.



Category: Tags:

Specifications

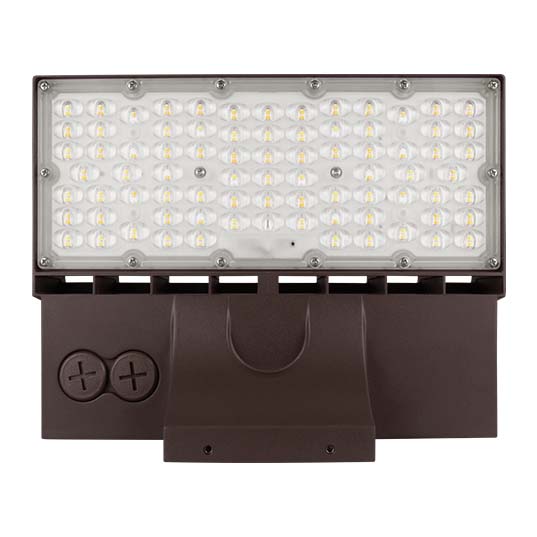

  • Clear injection-molded acrylic creates uniform distribution while maximizing lumen output
  • Type 2, 3, or 4 distribution

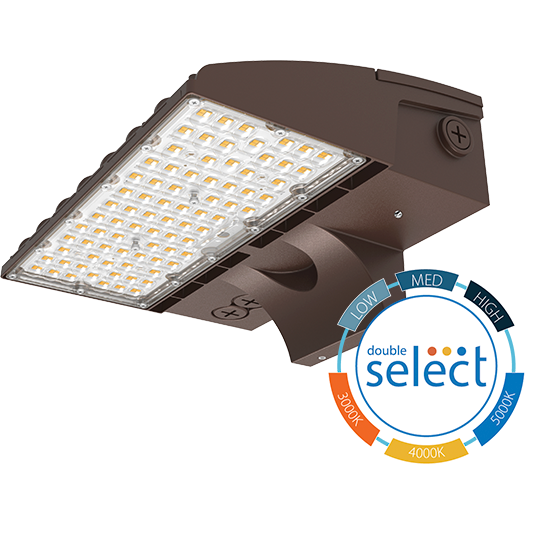

  • Uses a dual emitter array that enables CCT selection of 3000K, 4000K, 5000K
  • >80 CRI to improve safety and color definition in public places
  • Thermally-protected, high-efficiency driver
  • Input voltage of 120-277VAC
  • Selectable Wattage (60/48/36) or (100/80/60W)
  • Power Factor = >0.9
  • THD = ≤20%
  • Operating temperature rating of -40° to 113°F (-40°C to 45°C)

 Downloads



– Spec Sheet

– Sell Sheet

– Installation Instructions



- iES Files 60W

- iES Files 100W

60 Watt - Type III Optic
3000K
Warm White		4000K
Neutral		5000K
Cool

5445/7055/8509
Lumens

5780/7536/9179
Lumens

5672/7384/8974
Lumens

36/48/60
Input Watts

36/48/60
Input Watts

36/48/60
Input Watts

~147
lm/W

~162
lm/W

~153
lm/W

81
CRI

81
CRI

81
CRI

Part Number:

 Select:OWP2060SUNVS8BZ
100 Watt - Type III Optic
3000K
Warm White		4000K
Neutral		5000K
Cool

9113/12,045/14,167
Lumens

9694/12,650/15,377
Lumens

9495/12,286/15,022
Lumens

60/80/100
Input Watts

60/80/100
Input Watts

60/80/100
Input Watts

~147
lm/W

~165
lm/W

~154
lm/W

81
CRI

81
CRI

81
CRI

Part Number:

 Select:OWP2100SUNVS8BZ
60 Watt - Type III Optic
3000K
Warm White		4000K
Neutral		5000K
Cool

5445/7055/8509
Lumens

 5780/7536/9179
Lumens

 5672/7384/8974
Lumens

36/48/60
Input Watts

36/48/60
Input Watts

36/48/60
Input Watts

~147
lm/W

~162
lm/W

~153
lm/W

81
CRI

81
CRI

81
CRI

Part Number:

 Select:OWP2060SUNVS8BZ

100 Watt - Type III Optic
3000K
Warm White		4000K
Neutral		5000K
Cool

9113/12,045/14,167
Lumens

 9694/12,650/15,377
Lumens

 9495/12,286/15,022
Lumens

36/48/60
Input Watts

36/48/60
Input Watts

36/48/60
Input Watts

~147
lm/W

~165
lm/W

~154
lm/W

81
CRI

81
CRI

81
CRI

Part Number:

 Select:OWP2100SUNVS8BZ
