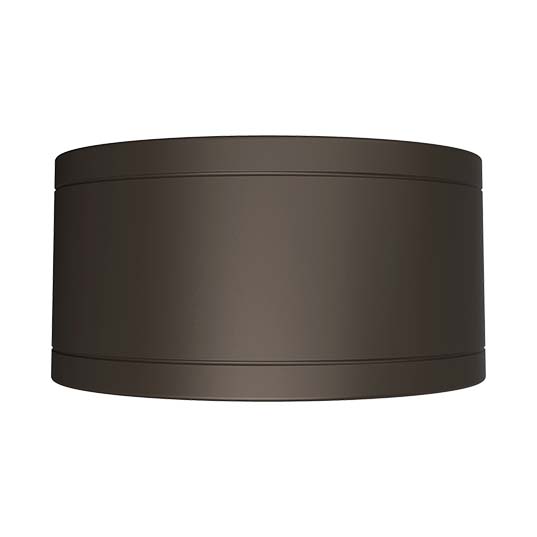

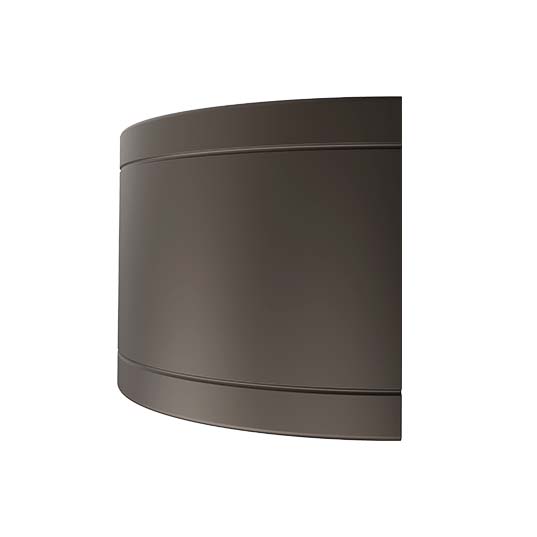

HALF MOON LED WALL PACK

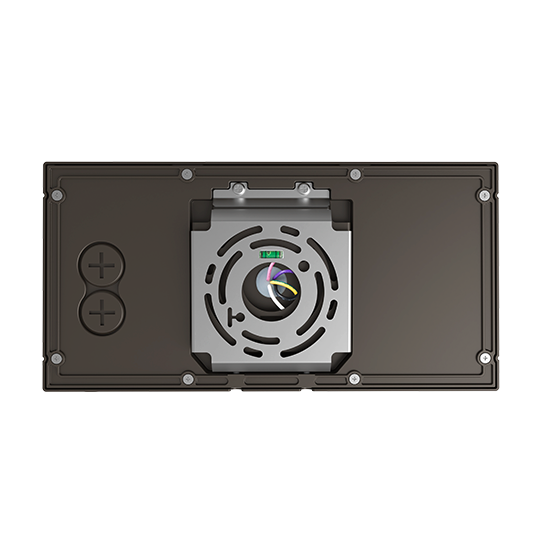

The half moon LED Wall Pack is an architectural style wall pack with customizable performance settings. It is easy to install on walls or directly on a J-Box with its mounting bracket. An internal switch offers the ability to adjust the wattage, CCT, and optional uplight operation for full light distribution. This curved wall pack features an integrated photocell and knockout for alternative sensor installation The OWT is suitable for perimeter lighting as well as building entrances, walkways, or other commercial spaces where general-purpose lighting is desired.



Category: Tags:

Specifications

  • A tight rubber seal and glass lens bring an excellent waterproof performance
  • Type III optic standard. Type IV and V lenses available
  • CCT Selectable (3000/4000/5000K)
  • Selectable distribution : full or down only
  • >80 CRI to improve safety and color definition in public places
  • Thermally-protected, high-efficiency driver
  • Input voltage of 120-277VAC
  • Selectable Wattage (80/64/48)
  • Power Factor = >0.9
  • THD = ≤20%
  • Operating temperature rating of -40° to 113°F (-40°C to 45°C)

Downloads

– Sell Sheet

– Spec Sheet
– Installation Instructions

– ies Files

80 Watt - Type III Full Distribution (80% downlight, 20% uplight)
3000K
Warm White		4000K
Neutral		5000K
Cool

7560/9773/11,648
Lumens

7842/10,290/7485
Lumens

7485/9756/11,798
Lumens

48/64/80
Input Watts

48/64/80
Input Watts

48/64/80
Input Watts

158/151/144
lm/W

169/165/161
lm/W

157/150/144
lm/W

81
CRI

81
CRI

81
CRI

Part Number:

 Select:OWT1080SUS8BZ
80 Watt - Type III Down Distribution (100% downlight)
3000K
Warm White		4000K
Neutral		5000K
Cool

7559/9772/11,648
Lumens

7840/10,288/11,648
Lumens

7484/9754/11,797
Lumens

48/64/80
Input Watts

48/64/80
Input Watts

48/64/80
Input Watts

158/151/144
lm/W

169/165/161
lm/W

157/150/144
lm/W

81
CRI

81
CRI

81
CRI

Part Number:

 Select:OWT1080SUS8BZ
80 Watt - Type III Full Distribution (80% downlight, 20% uplight)
3000K
Warm White		4000K
Neutral		5000K
Cool

7560/9773/11,648
Lumens

 7842/10,290/7485
Lumens

 7485/9756/11,798
Lumens

48/64/80
Input Watts

48/64/80
Input Watts

48/64/80
Input Watts

158/151/144
lm/W

169/165/161
lm/W

157/150/144
lm/W

81
CRI

81
CRI

81
CRI

Part Number:

 Select:OWT1080SUS8BZ



80 Watt - Type III Full Distribution (100% downlight)
3000K
Warm White		4000K
Neutral		5000K
Cool

7559/9772/11,648
Lumens

 7840/10,288/11,648
Lumens

 7484/9754/11,797
Lumens

48/64/80
Input Watts

48/64/80
Input Watts

48/64/80
Input Watts

158/151/144
lm/W

169/165/161
lm/W

157/150/144
lm/W

81
CRI

81
CRI

81
CRI

Part Number:

 Select:OWT1080SUS8BZ
