RECESSED LED DOWNLIGHT WITH NIGHT LIGHT

The NICOR RDN Series Retrofit LED Downlight features a new and unique nightlight feature, designed to provide warm ambient light at 2000K to enhance any room. Crafted from durable polymer, this sleek downlight combines modern aesthetics with energy efficiency. The main feature is its dual functionality: bright, crisp lighting for everyday use and a gentle nightlight mode for those quiet evenings. With a simple switch, transition from full brightness to a warm, soothing glow that provides just the right amount of illumination for nighttime navigation without disturbing your sleep. Perfect for bedrooms, hallways, and living areas, this downlight is easy to install and offers long-lasting performance, making it an ideal choice for both residential and commercial settings. Upgrade your lighting and enjoy the perfect blend of style, functionality, and comfort.



* Except 5000K

Category: Tags:

Specifications

  • Polycarbonate diffuser creates uniform light distribution with reduced glare
  • Contains dual emitter array that enables CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
  • Amber (2000K) inner light for night light mode
  • Utilizes high performing LEDs with 95+ CRI and an R9 > 65
  • Input voltage 120VAC, 60Hz

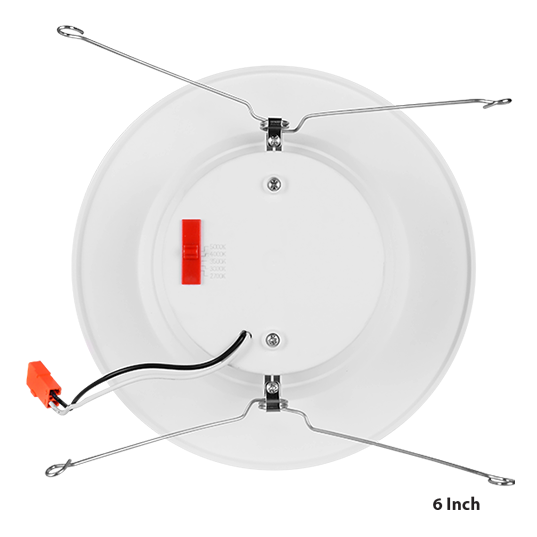

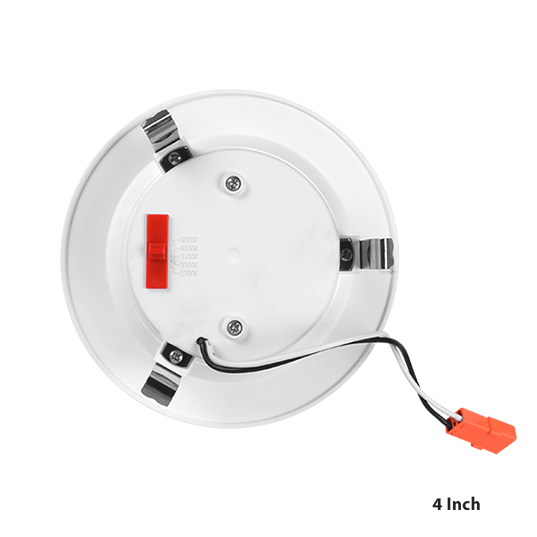

  • CCT selection switch on top of fixture body
  • Dimmable to <10% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
  • Operating temperature of -4°F to 104°F (-20°C to 40°C)
  • Night Light Performance Data (4" & 6"):
    • CCT - 2000K
    • Lumens - 30
    • Wattage - 5
    • Lumens/Watt - 6
  • Fixtures available in:
    • White Smooth
    • White Baffle

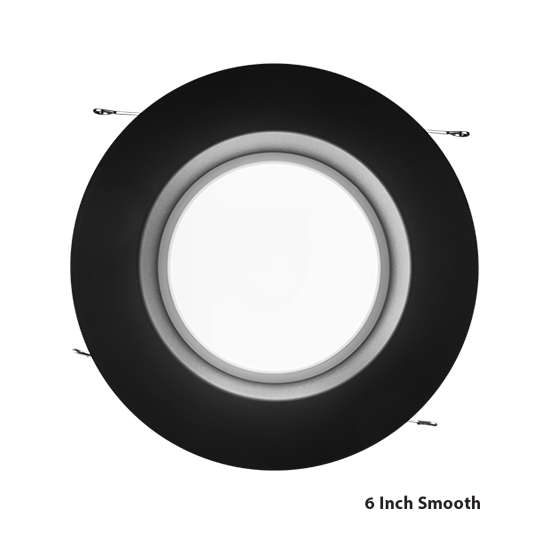

    • Black Smooth

Downloads

– Sell Sheet
– Features and Benefits

– Spec Sheet
– Installation Instructions

– ies Files 4"
– ies Files 6"

RDN - 4" Round
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

720
Lumens

756
Lumens

766
Lumens

769
Lumens

787
Lumens

7.49
Input Watts

7.44
Input Watts

7.49
Input Watts

7.46
Input Watts

7.40
Input Watts

96.1
lm/W

101.6
lm/W

102.3
lm/W

103.1
lm/W

106.4
lm/W

95
CRI

95
CRI

95
CRI

95
CRI

95
CRI

Part Number:

 Select:RDN41120S9
RDN - 6" Round
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

932
Lumens

975
Lumens

992
Lumens

995
Lumens

1016
Lumens

9.49
Input Watts

9.43
Input Watts

9.41
Input Watts

9.46
Input Watts

9.39
Input Watts

98.2
lm/W

103.4
lm/W

105.4
lm/W

105.2
lm/W

108.2
lm/W

95
CRI

95
CRI

95
CRI

95
CRI

95
CRI

Part Number:

 Select:RDN561120S9
RDN - 4" Round
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

720
Lumens

756
Lumens

766
Lumens

769
Lumens

787
Lumens

7.49
Input Watts

7.44
Input Watts

7.49
Input Watts

7.46
Input Watts

7.40
Input Watts

96.1
lm/W

101.6
lm/W

102.3
lm/W

103.1
lm/W

106.4
lm/W

95
CRI

95
CRI

95
CRI

95
CRI

95
CRI

Part Number:

 Select:RDN41120S9



RDN - 6" Round
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

932
Lumens

975
Lumens

992
Lumens

995
Lumens

1016
Lumens

9.49
Input Watts

9.43
Input Watts

9.41
Input Watts

9.46
Input Watts

9.39
Input Watts

98.2
lm/W

103.4
lm/W

105.4
lm/W

105.2
lm/W

108.2
lm/W

95
CRI

95
CRI

95
CRI

95
CRI

95
CRI

Part Number:

 Select:RDN561120S9
