RECESSED LED DOWNLIGHT

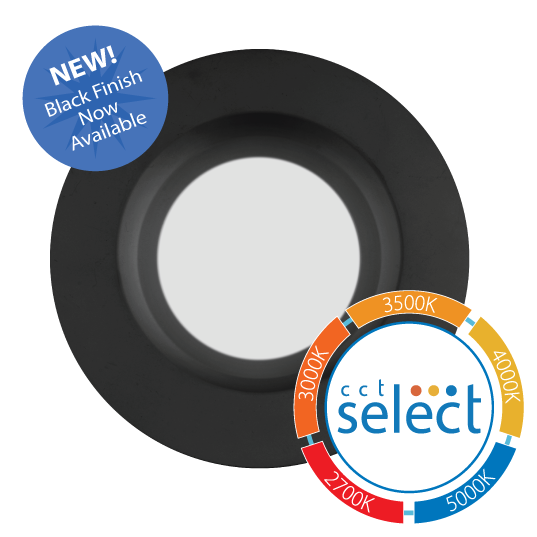

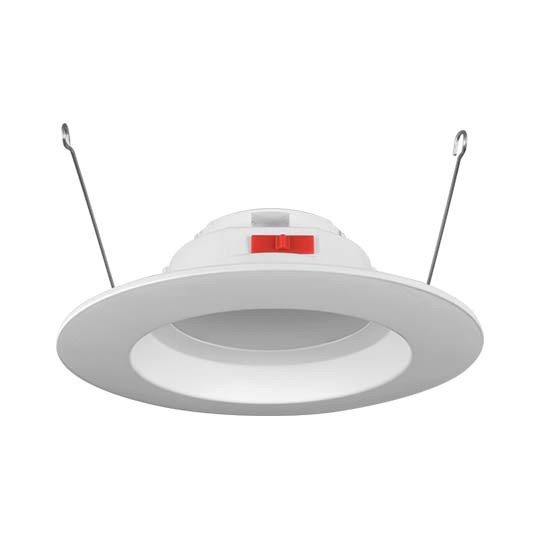

The DLRv6P is the newest generation of NICOR retrofit downlights, available in Selectable CCT models. Designed for both new construction and retrofitting, the polymer trimmed DLRv6P is available in white or black and fits standard 5” or 6” housings and the patented new-construction frame. With an impressive output of over 90 LPW, 90+ CRI, and an R9 value greater than 50, it meets the latest certification standards. A switch on the driver cap allows for easy CCT adjustment to 2700, 3000, 3500, 4000, or 5000K. The DLRv6P system, when combined with the frame, offers an energy-efficient and cost-effective solution for high-quality lighting.

     **  Wet Location tag

* Except 5000K

** When used with DLR56-Frame

Specifications

  • Selectable models use a dual emitter array that enables CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
  • CCT selection switch on back of housing
  • Polycarbonate diffuser creates uniform light distribution with reduced glare
  • Utilizes high performing LEDs with 90+ CRI and an R9 > 50
  • Input voltage 120VAC, 60Hz
  • Dimmable to 10% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
  • Operating temperature of -4°F to 104°F (-20°C to 40°C)

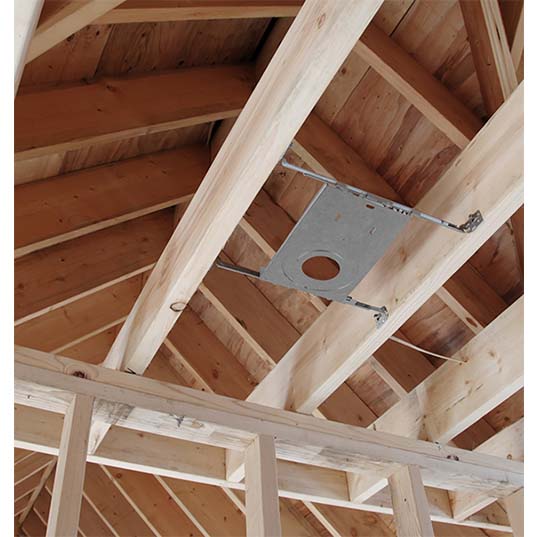

  • Available Frame Accessories for DLRv6P

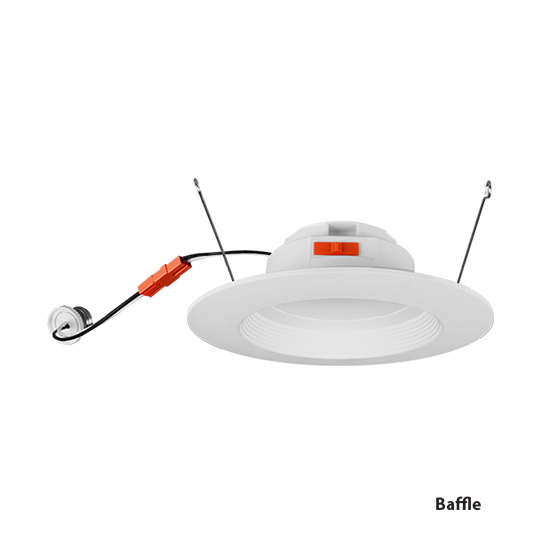

  • Available in Black and White, Smooth & Baffle
DLRv6P
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

895
Lumens

923
Lumens

937
Lumens

945
Lumens

919
Lumens

9.2
Input Watts

9.2
Input Watts

9.2
Input Watts

9.2
Input Watts

9.2
Input Watts

97.3
lm/W

100.3
lm/W

101.8
lm/W

102.7
lm/W

99.9
lm/W

95
CRI

95
CRI

95
CRI

95
CRI

95
CRI

Part Number:
