EXL2V3 – LED Edge-Lit Exit Sign

LED EDGE-LIT EXIT SIGN

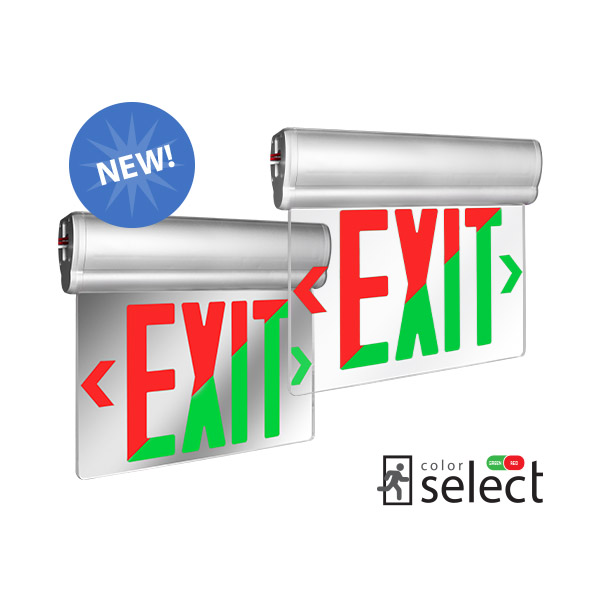

The EXL2v3 LED Edge Lit Exit Series features a contemporary design with ease of installation in mind. The pivoting driver case allows for wall, ceiling, stairwell, or end-mount installation, all in one, dependable package. Constructed of impact-resistant acrylic, choose from a clear single-faced panel or a mirrored universal panel. High-output LEDs deliver an indirect, evenly illuminated edge-lit exit sign with exceptional light distribution and a maintenance-free nickel-cadmium battery for long life. The EXL2v3 Series also offers field-adjustable chevrons for universal configuration based on your application’s directional needs.

Description

Specifications

Input Voltage: 120-277 VAC, 60Hz
Power Draw: 2W
ABS plastic housing
The driver case pivots 180° for a variety of installation needs
Impact-resistant acrylic panel
Single-face clear panel with the option to convert into a double-face panel
The maintenance-free NiCad battery provides 90-minute emergency operation
Fully-illuminated 6" letter height with 3/4" stroke
Select between green and red lettering with an accessible button
Damp location rated
Operating temperature: 32°-104°F (0°-40°C)

Part Numbers:

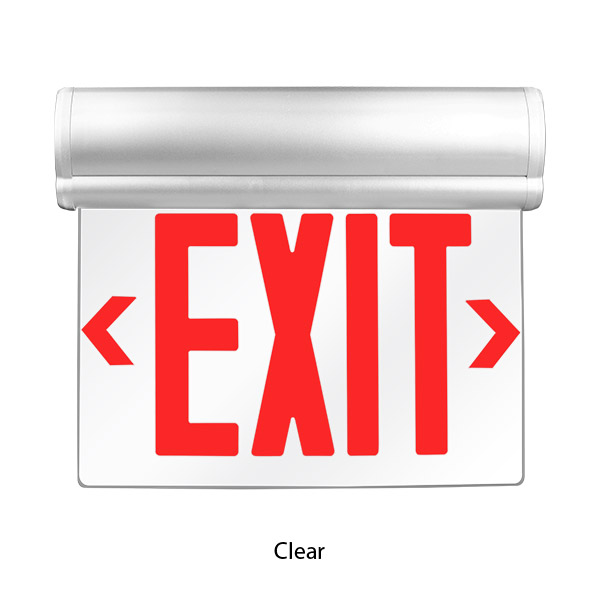

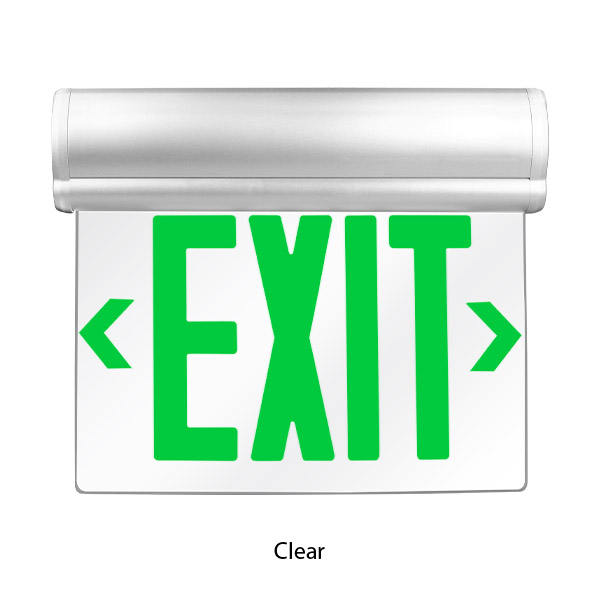

EXL23UNVCLSSSV - Adjustable Edge lit Exit Sign Clear Single Face Color Select Panel

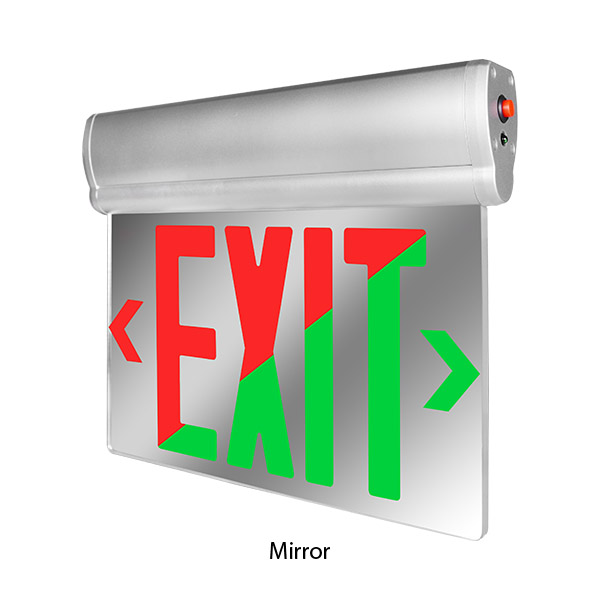

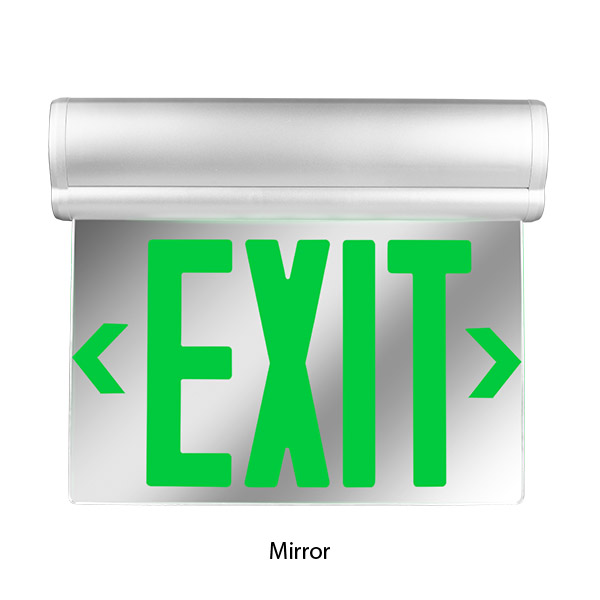

EXL23UNVMRUSSV - Adjustable Edge lit Exit Sign Mirrored Universal Face Color Select Panel
