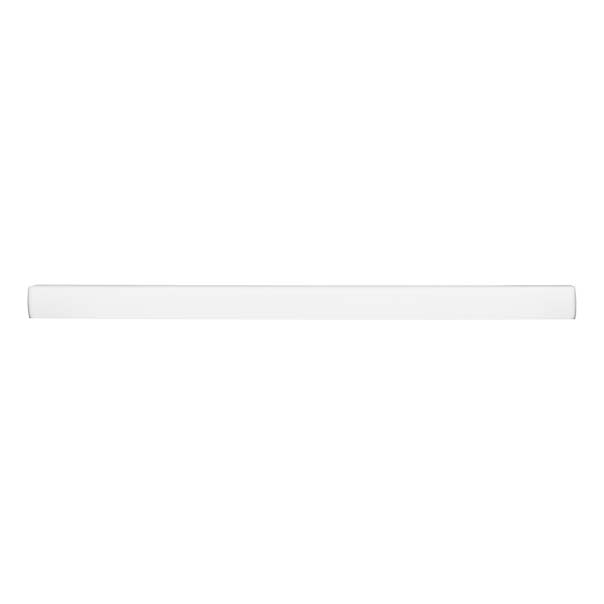

SELECTABLE OUTPUT & CCT LED LINEAR STRIP

The LSL1 LED Linear Strip offers selectable light output and CCT, delivering optimal performance and long life in a slim design ideal for general ambient lighting in retail, warehouse, residential utility, and light commercial or industrial applications. This versatile fixture is easy to surface mount on both ceilings and walls and can accommodate end-toed runs. The LSL1 features a toolless access lens module that is easily removed from the back channel for simple installation. The lens features a semi-circular, milky-white lens that offers a more polished aesthetic while eliminating hotspots, and is an economical, energy efficient lighting alternative to single-lamp fluorescent strips and some wraparound fixtures. For even greater energy savings, optional controls, including factory-installed microwave occupancy sensors are available.



Specifications

  • Semi-circular, milky-white diffuser eliminates hotspots and pixelation
  • Lens module retention method securely holds it in ceiling, wall, or pendant mount
  • Input voltage of 120-277VAC
  • CCT selectable at 3500K/4000K/5000K
  • Wattage output selectable at 2’ (25/20/15W), 4’ (45/38/34W), 8’ (90/75/65W)
  • Full-range dimming from 0 - 10VDC
  • Power factor > 0.9
  • THD < 20%
  • Through wiring capable for end-to-end runs
  • Operating temperature rating of 0°F to 120°F (-18°C to 40°C)
  • Available Options:
    • LSL Microwave Sensor 12V Snap-in (SNAPINSENSORMW)
    • Remote Controller for SNAPINSENSORMW (SNAPINMWREMOTE)
LSL - 2 Foot

3500K
Warm White
4000K
Neutral
5000K
Cool

3121/2640/1926
Lumens

3146/2687/1957
Lumens

3168/2672/1944
Lumens

25/20/15
Input Watts

25/20/15
Input Watts

25/20/15
Input Watts

130/130/130
lm/W

131/132/132
lm/W

132/132/131
lm/W

84
CRI

84
CRI

84
CRI

Part Number:

 Select:LSL1225SUS
LSL - 4 Foot

3500K
Warm White
4000K
Neutral
5000K
Cool

6241/5270/4715
Lumens

6647/5637/5044
Lumens

6401/5406/4837
Lumens

45/38/34
Input Watts

45/38/34
Input Watts

45/38/34
Input Watts

134/137/135
lm/W

142/146/145
lm/W

137/140/139
lm/W

84
CRI

84
CRI

84
CRI

Part Number:

 Select:LSL1445SUS
LSL - 8 Foot

3500K
Warm White
4000K
Neutral
5000K
Cool

12,482/10,402/9015
Lumens

13,351/11,125/9642
Lumens

12,803/10,669/9246
Lumens

90/75/65
Input Watts

90/75/65
Input Watts

90/75/65
Input Watts

134/139/140
lm/W

143/149/150
lm/W

137/143/144
lm/W

83
CRI

83
CRI

83
CRI

Part Number:

 Select:LSL1890SUS
