SELECTABLE LED WALLPACK

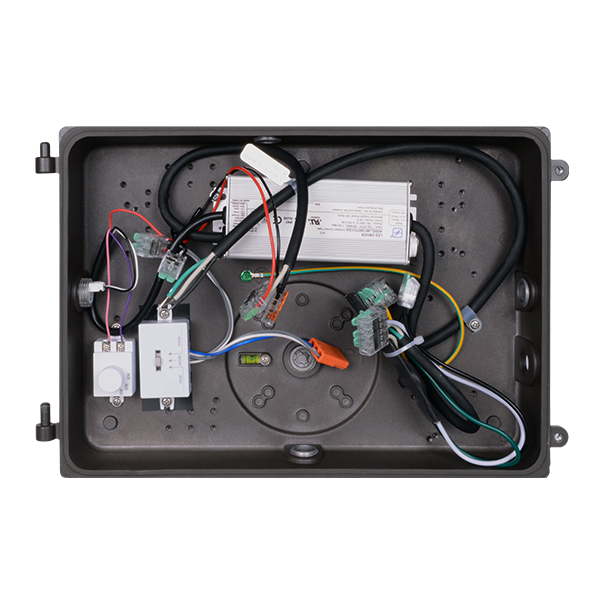

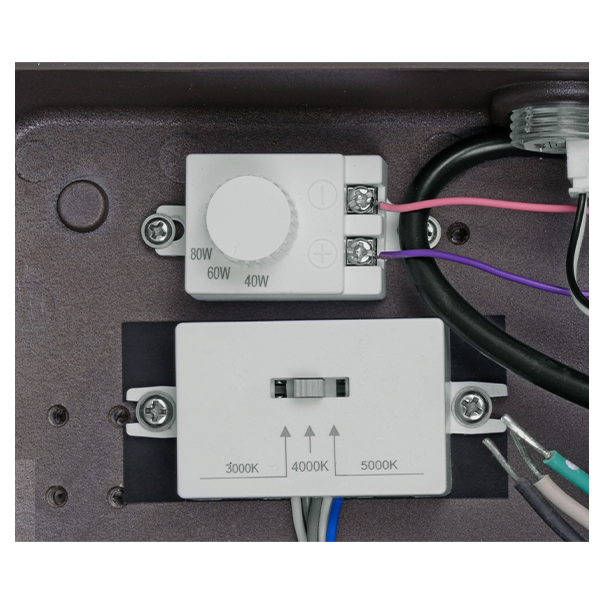

Introducing the OWF4 Full Cut Off LED Wallpack – a cutting-edge lighting solution that seamlessly combines classic architectural style with enhanced performance and a sleek new slim factor. Designed to minimize visual obstruction, the slim profile ensures a spacious and open atmosphere for buildings or outdoor areas. Boasting an impressive output of up to 138 lumens per watt, the OWF4 provides uniform light distribution and reduced glare through its Type III distribution precision lens. Installation is a breeze with the separable hinged backplate, allowing easy mounting on walls or directly to a J-Box. With three knockouts for through-wiring or sensor additions, flexibility is key. The Double Select models feature an internal switch for CCT adjustment (3000K, 4000K, 5000K) and Wattage control (low, med, high). Ideal for perimeter lighting, building entrances, walkways, and various commercial spaces, the OWF4 sets a new standard for versatile, high-performance general-purpose lighting solutions.



Specifications

  • Clear injection-molded acrylic creates uniform distribution while maximizing lumen output
  • Type III distribution
  • CCT Selectable models use a dual emitter array that enables CCT selection of 3000K, 4000K, 5000K
  • >70 CRI to improve safety and color definition in public places
  • Thermally-protected, high-efficiency driver
  • Input voltage of 120-277VAC, 50/60Hz
  • Power Factor = >0.9
  • THD = ≤20%
  • 0-10V dimming
  • Selectable Wattage (80W, 60W, 40W)
  • Optional sensor socket installation available
  • Operating temperature rating of -40F° to 122°F (-40°C to 50°C)
  • Emergency Option at operating temperature of (0°C to 45°C)
  • Optional internal emergency back-up
80 Watt - Select
3000K
Warm White
4000K
Neutral
5000K
Cool

10473/7855/5237
Lumens

11116/8337/5558
Lumens

11294/8471/5647
Lumens

80/60/40
Input Watts

80/60/40
Input Watts

80/60/40
Input Watts

121
lm/W

129
lm/W

131
lm/W

73
CRI

73
CRI

73
CRI

Part Number:

 Select:OWF4080S
80 Watt - Select
3000K
Warm White
4000K
Neutral
5000K
Cool

10473/7855/5237
Lumens

 11116/8337/5558
Lumens

11294/8471/5647
Lumens

80/60/40
Input Watts

80/60/40
Input Watts

80/60/40
Input Watts

121
lm/W

129
lm/W

131
lm/W

73
CRI

73
CRI

73
CRI

Part Number:

 Select:OWF4080S
