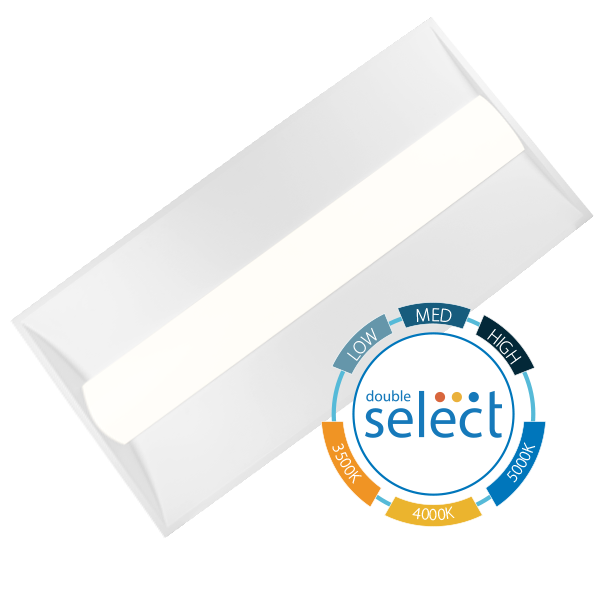

SENSOR READY ARCHITECTURAL LED TROFFER

The Sensor-Ready version of the TAC Select Troffer takes energy efficiency and smart functionality to the next level. Equipped with built-in sensor compatibility, this model can seamlessly integrate with occupancy sensors and daylight harvesting systems, optimizing energy use and enhancing the overall lighting experience. The CCT Selectable design allows for easy adjustment to 3500K, 4000K, or 5000K and selectable wattage allows the ability to tailor the brightness to the space. Available in 2×2, or 2×4 configurations, the Sensor-Ready TAC Select is a forward-thinking choice for modern buildings.



Category: Tags:

Specifications

  • Precision engineered polycarbonate (PC) diffuser
  • No visible diodes, hot-spots, or shadows providing high uniformity, and reduced glare
  • 80CRI for good color definition in public spaces
  • Input voltage of 120-277VAC
  • Dim-to-off dimming via 0-10VDC controls

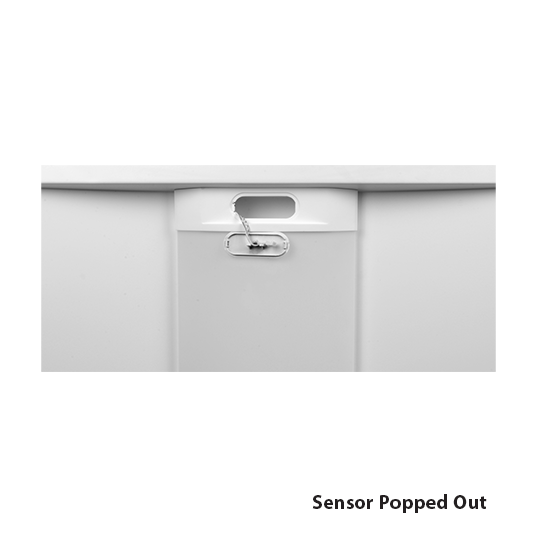

  • Sensor-ready socket for PIR or MW sensors
  • 12V accessory output to power sensors or other control items

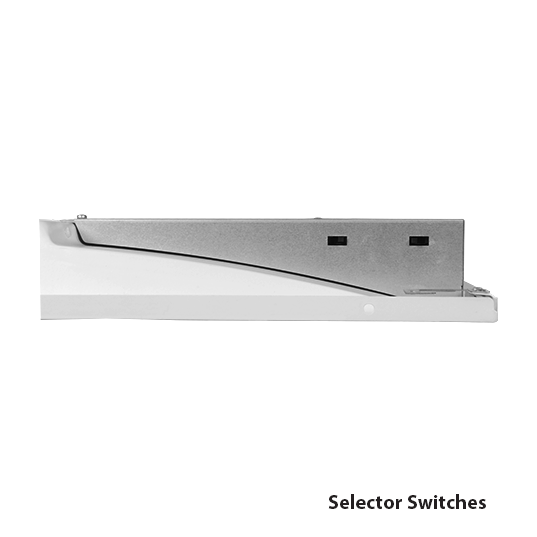

  • CCT and Wattage selector switches accessible on junction box
  • Power factor > 0.9
  • THD < 10%
  • Luminaire surge protection level: designed to withstand up to 2.5kV ring wave per ANSI C82.77-5-2017 requirements for Indoor Hard-wired and Indoor Portable Luminaires
  • Operating temperature range: 4°F to 104°F (-20° to 40°C)

Downloads

– Sell Sheet
– Features and Benefits

– Spec Sheet
– Installation Instructions

TAC3 - 2x2
3500K
Warm Neutral		4000K
Neutral		5000K
Cool

1904/2539/3174
Lumens

 1991/2655/3319
Lumens

 1908/2544/3179
Lumens

15/20/25
Input Watts

15/20/25
Input Watts

15/20/25
Input Watts

127
lm/W

138
lm/W

128
lm/W

85
CRI

85
CRI

85
CRI

Part Number:

 ALL:TAC32225SUS8S

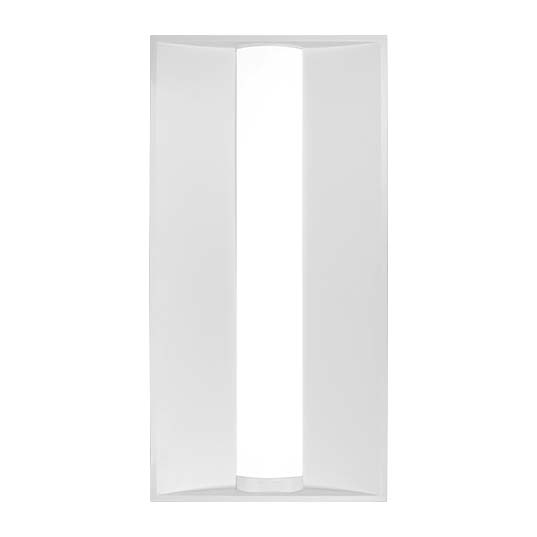

TAC3 - 2x4
3500K
Warm Neutral		4000K
Neutral		5000K
Cool

3832/5110/6387
Lumens

 4085/5446/6808
Lumens

 3869/5159/6449
Lumens

30/40/50
Input Watts

30/40/50
Input Watts

30/40/50
Input Watts

128/128/124
lm/W

134/134/130
lm/W

129/129/125
lm/W

84
CRI

84
CRI

84
CRI

Part Number:

 ALL:TAC32450SUS8S
